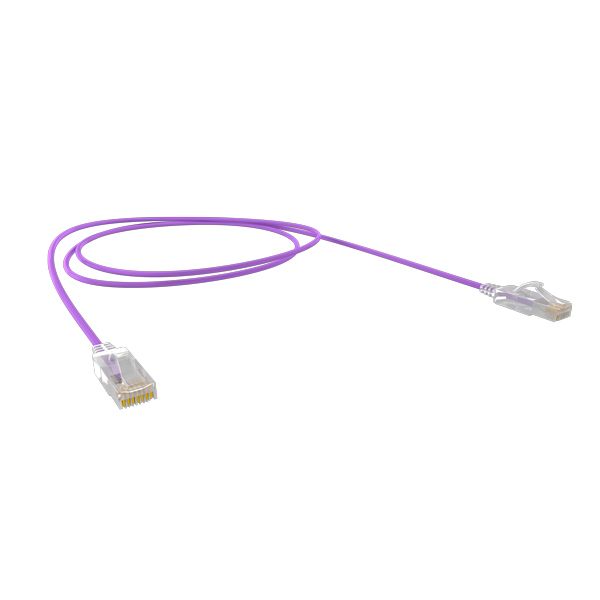

CERTECH Cat6A 30AWG UTP 10G RJ45 Patch Lead, Purple PVC Jacket, 0.25m
Stock Code:
NPLSC6APP0.25
NPLSC6APP0.25
CERTECH Cat6A 30AWG UTP 10G RJ45 Patch Lead, Purple PVC Jacket, 0.25m
Product Details
-
Product Type:Cat6A UTP Super-Thin (30AWG) Patch Leads
-
Colour:Purple
-
Material:PVC Jacket
-
Operating Frequency:500MHz
Product Overview
CERTECH Cat6A UTP Super-Thin (30AWG) Patch Leads - 500MHz
CERTECH Cat6A UTP super-thin patch leads conform to the TIA/EIA-568-B specification.
Patch leads are wired to the T568A pin-out specification.
They are component level tested and are made with tangle free slim-line injection moulded boots and latch down plugs, and are available in various colours and lengths.
Features
- Produced by an ISO9001 & ISO14001 certified manufacturer
- 100% tested & component level certified by 3P, UL & ETL
- AS/CA S008:2020 Approved
- Covered by a lifetime warranty
- Perfect for cabling network data cabinets
- Perfect for cabling home structured wiring boxes
- Perfect for cabling high density patch environments
- Available in 11 colours
Specifications
- Conductor Gauge: 30AWG
- Conductor Type: Stranded
- Performance Level: 100% Component Tested
- Cable Construction: U/UTP
- Jacket Material: PVC
- Plug Type: RJ45 8P8C
- Plug Housing Material: PVC
- Connector End A: RJ45 Modular Plug
- Connector End B: RJ45 Modular Plug
- Nominal Cable Outer Diamater: 3.1mm +/- 0.3mm
- Wiring Scheme: T568A
- Maximum Storage Temperature: 60°C
- Maximum Operating Temperature: 60°C
- Minimum Operating Temperature: -20°C
- Flammability Rating: IEC60332-1-2
- Standards Met: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-3-2 & IEC 60332-1-2
