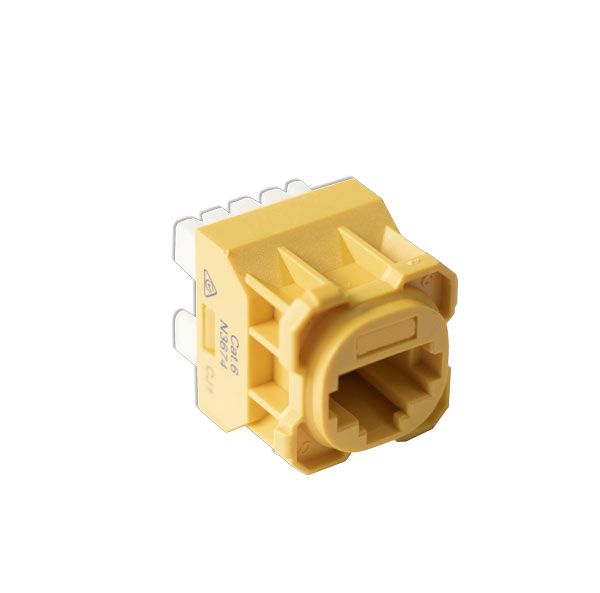

Cat6 RJ-45 UTP Wall Plate Jack. Yellow

Stock Code:
JWPC6YL
Make an Enquiry
JWPC6YL
Cat6 RJ-45 UTP Wall Plate Jack. Yellow

Product Details

  • Colour:
    Yellow

Product Overview

High Performance Cat6 UTP Jack, Australian style.
Yellow Colour

Performance:

Meets Cat6 EIA/TIA 568B.1 Standards

Materials:

Plastic Body: Fireproof ABS UL-94V0
RJ-45 Jack: 8P8C micro inches gold plated
PCB: FR-4 / 1.0mm UL94V0
IDC Body: Fireproof ABS UL-94V0
IDC Pin: Bronze & Tinned

Label Colour Code: T568A

IDC Description:

For 22-26 AWG
For 110 or Krone punch down tool

Electrical Specifications:

Insulation Resistance: 500m ohms (min)
Contact Resistance: 20m ohms (max)
Current Rating: 1.5 Amps
DC Resistance: 0.1 ohm (max)
Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1 min

Mechanical Specifications:

IDC Punch Down Cycle: Over 250 Cycles (min)
RJ-45 Jack Insertion Cycle: Over 2000 Cycles (min)
Operating Temperature: -40 ~ +70 Degrees Celcius
