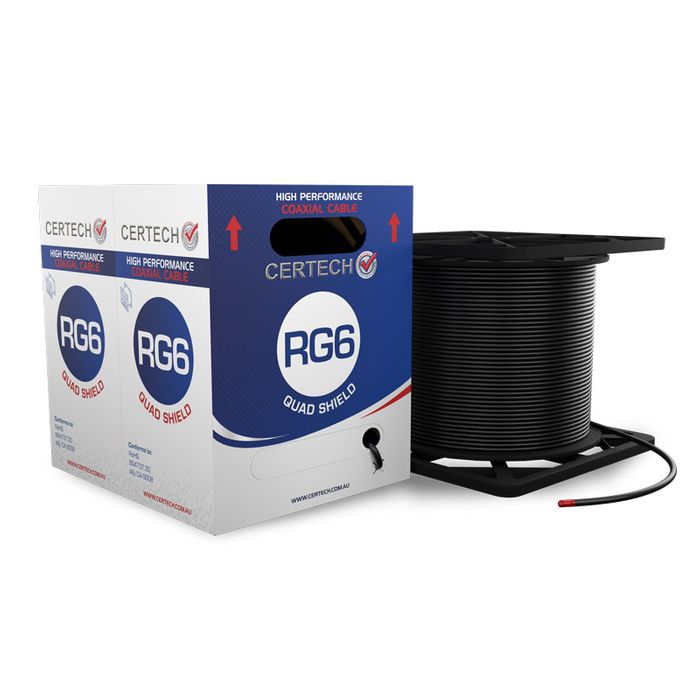

CERTECH RG6 Quad Shield Cable, 305m Box
Stock Code:
NRG6QSH305
Height:
410mm
Width:
330mm
Depth:
400mm
NRG6QSH305
CERTECH RG6 Quad Shield Cable, 305m Box
Product Overview
CERTECH RG6 Quad Shield Cable, 305m Box
High quality RG6 Quad shield cable for use with the new generation of video signals like Pay TV, digital television and traditional analogue video signals.
Construction:
Centre Conductor: 18 AWG Copper Clad Steel
Nominal Diamater: 1.02mm
Dielectric: Gas Expanded Plyethylene (Foam PE)
Nominal Diameter over Dielectric: 4.57mm
Shielding:
1st Shield: Bonded AL/PET/AL Tape
2nd Shield: 16x4x0.16mm (60%) Aluminium Wire Braid
3rd Shield: AL/PET/AL Tape
4th Shield: 16x3x0.16mm (40%) Aluminium Wire Braid
Nominal Diamater over Shield: 6.15mm
Jacket:
PVC Jacket
Nominal Diamater over Jacket: 7.62mm
Nominal Jacket Thickness: 0.74mm
Attentuation:
| Frequency (MHz) | Max (dB/100m) | Frequency (MHz) | Max (dB/100m) |
| 5 | 1.90 | 600 | 16.73 |
| 55 | 5.25 | 750 | 18.54 |
| 211 | 10.00 | 870 | 20.04 |
| 250 | 10.82 | 1000 | 21.49 |
| 270 | 11.04 | 1300 | 24.49 |
| 300 | 11.64 | 1450 | 25.89 |
| 330 | 12.26 | 1750 | 28.67 |
| 350 | 12.63 | 2150 | 31.79 |
| 400 | 13.61 | 2600 | 35.30 |
| 450 | 14.43 | 2832 | 37.74 |
| 500 | 15.29 | 3000 | 38.84 |
| 550 | 16.08 |
Electrical & Mechanical Characteristics
| Impendance | 75+-2.5 Ohm | Propagation Velocity | 82% |
| Capacitance | 54pF / m | Insulation Resistance | >10000 M Ohm. Km |
| Return Loss | 5-3000MH > 20dB | Adhesion Force | >20N @ 30cm Sample |
| Inner Conductor DCR | 90 Ohm / Km | DC Breakdown Voltage | 3.0 KV |
