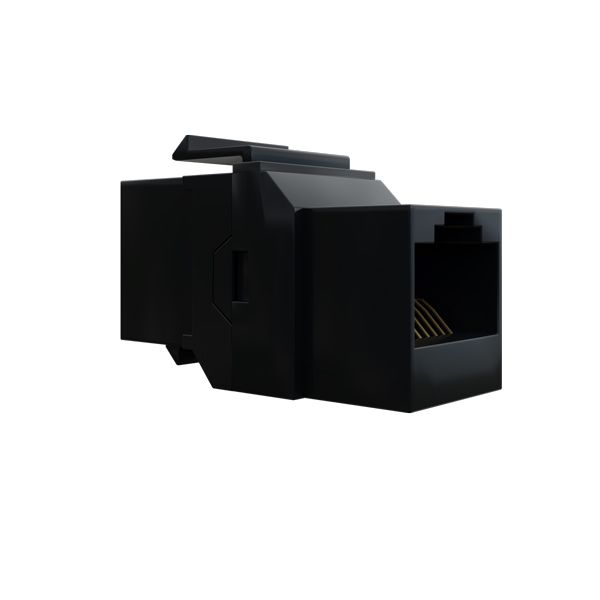

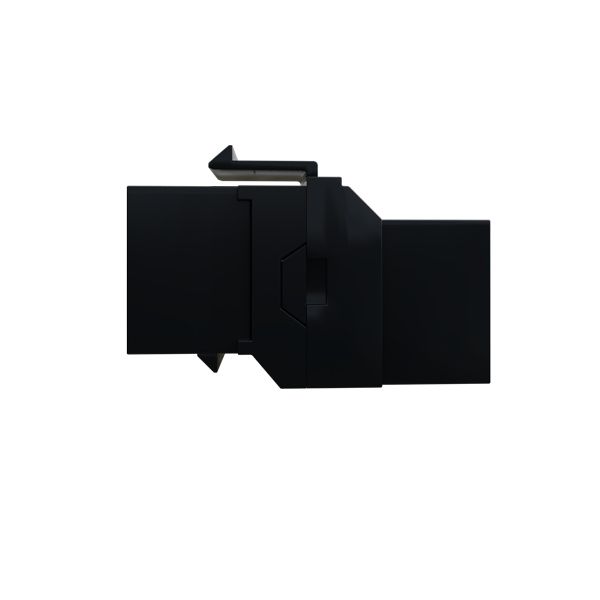

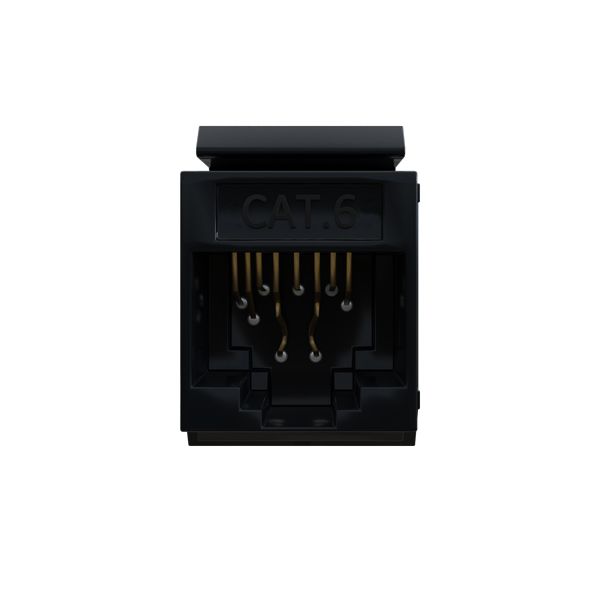

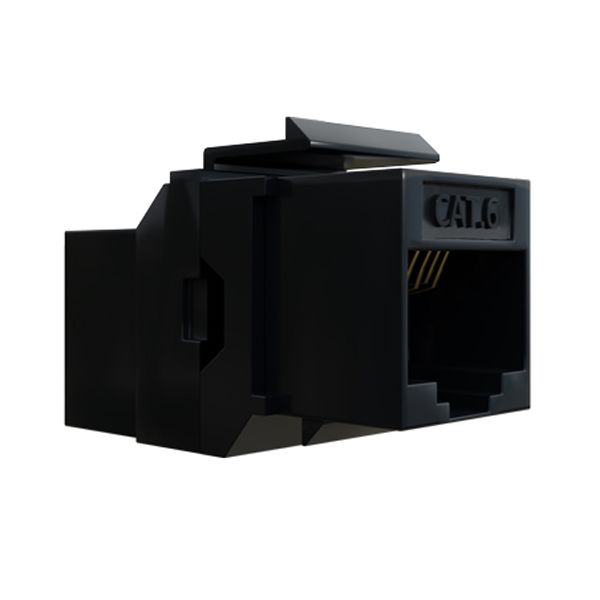

Cat6 RJ-45 UTP Straight Through Keystone Joiner
Stock Code:
JKC6ST
JKC6ST
Cat6 RJ-45 UTP Straight Through Keystone Joiner
Product Details
-
Colour:Black
Product Overview
CERTECH Cat6 RJ45 Straight Through Keystone Joiner
MATERIAL:
1.RJ45 Housing:PC
2.Phosphor Bronze with 50-60 micro-inch Nickel plated
3.Contact area:3-50 micro-inch Gold plated
4.IDC Housing:PC
5.IDC Terminal materal & finished:
5-1.Phosphor Bronze with 50 micro-inch Tin-Lead plated.Dver 50-60 micro-inch Nickel plated.
5-2.Use for 22-26 AWG stranded and solid wire
6.Jack Bracket Set:ABS Black color
7.PCB: FR4 UL 94V0
PERFORMANCE:
1.The IDC Color combine two wirings of T568A & T568B
2.Insertion Force:900 grms for 8 contacts
3.Retention Strength:7.7Kgs between Jack and Plug
4.Dperation Temperature:-40? to 70?
5.Durability:
5-1. Jack:750 cycles Plug-Jack mating and unmating test
5-2. IDC:Max 200 punching times
