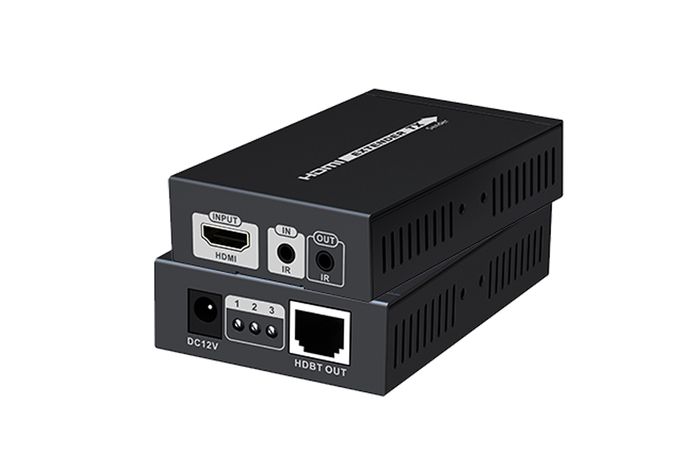

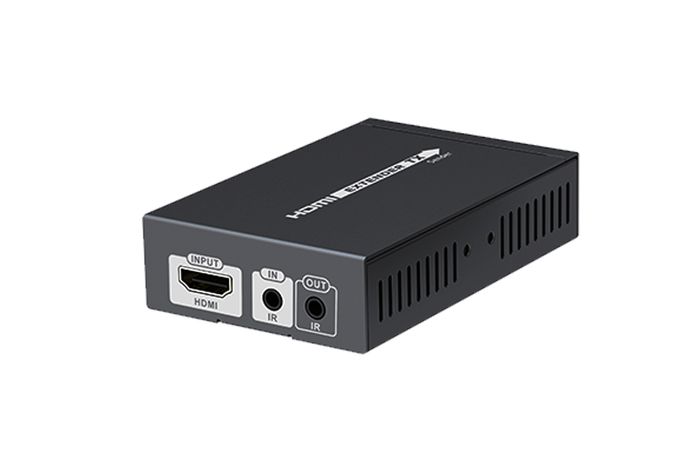

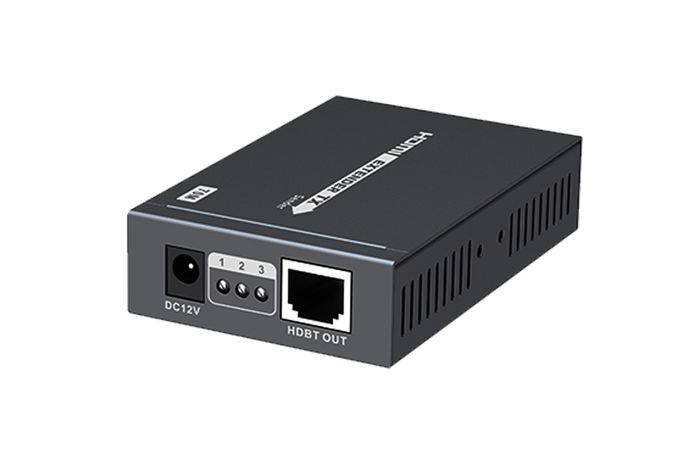

HDMI HDBaseT Extender over Cat6 to 70 Metres, 1080p
Product Overview
CERTECH HDBaseT HDMI Extender over single Cat cable up to 70m.
Features
Incorporates HDbaseT extend technology
Transmit uncompressed HDMI signal over CAT6/6a cable
Supports full HD 1080p@60Hz, 3D, 4Kx2K@60Hz
Supports distance up to 70 metres with CAT6a/7
Supports bidirectional IR pass-back function
Supports HDCP ,CEC, 24 deep colour
Supports uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
Specifications
HDMI Signal: 4Kx2K, compatible with HDCP, supports CEC & 24bits deep colour
Supported Resolutions: 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K
Audio: LPCM, DTS-HD, Dolby True HD
Network Cable: Cat6/6A
Transmission Length: Cat6: 70m; 1080p@60Hz 36bpp, 40m; 1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz, 4Kx2K@ 60Hz(4:2:0)
Infrared back: Supports 20~60kHz wide frequency devices and Bi-directional IR transmission
Power supply: DC12V/1A *2pcs
Power consumption: TXï¼Â3.5W, RXï¼Â6W
Product dimension: 98.5(L)x66.5(W)x23(H)mm *2pcs
Enclosure material: Metal
Weight: TX:79g RX:107g
Colour: Black
