Product Overview

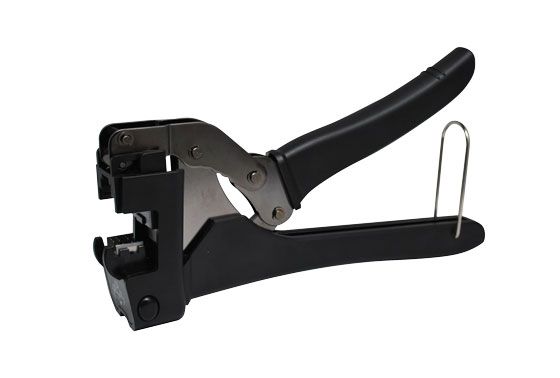

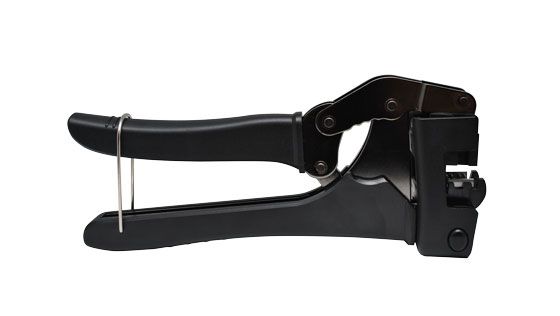

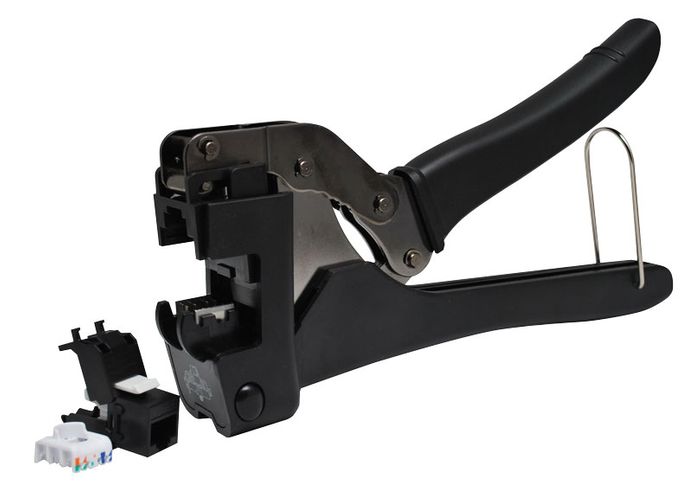

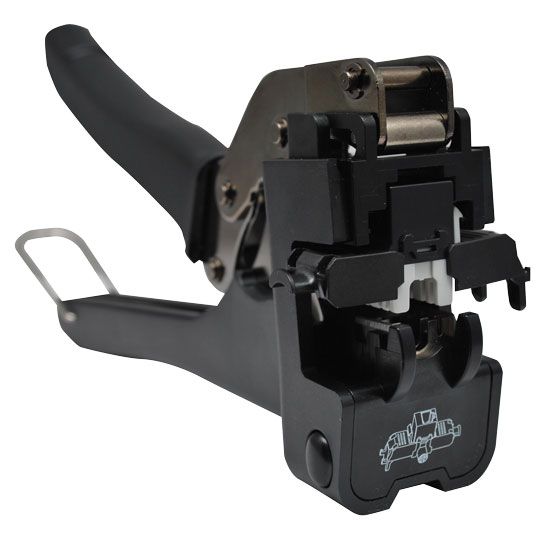

CERTECH Cat6A Rapid Termination Tool
Designed for Cat6A UTP Jacks
The JKC6ARAPID termination tool allows installers to terminate all 4 pairs and simultaneously cut off excess wires in one simple squeeze, guaranteeing time-saving and effortless installations.
Features:
Reduces Installation Time
Easy to use - crimps and cuts all wires at once
Sturdy, lightweight handle reduces hand-fatigue
Locking handle, keeping it compact for storage
Built in housing to keep jacks in place, allowing for accurate terminations each and every time
Specifications:
1. Slide Carriage: Polycarbonate, UL 94V-2 Black
2. Bracket Set:
- Polycarbonate, UL 94V-2 Black, 0.5
- MN 0.5mm thickness with 5~8um nickel plated
- SUS420
3. Housing: ABS+PC, UL 94V-2 Black
4. Push Button: Polycarbonate, UL 94V-2 Black
5. Left Hand Shank:
- Polycarbonate, UL 94V-2 Black
- SPCC, 2.0mm thickness with 5~8 nickel plated
6. Right Hand Shank:
- Polycarbonate, UL 94V-2 Black
- SPCC, 2.0mm thickness with 5~8 nickel plated
Performance:
Operating Function: Tool for JKC6ATLBK10/24
Operating Temperature: -20 to +70 Degrees
Storage Temperature: -20 to +80 Degrees
