CERTECH 305M Cat6A 10G U/FTP Solid Gel Filled (Underground) Cable
Product Details
-
Product Type:Network & Data Cable - Cat6A U/FTP (External Underground)
-
Colour:Black
-
Material:UV Stabilised PE Jacket
-
Product Width:380mm
-
Product Depth:380mm
-
Product Height:320mm
-
Operating Frequency:500MHz
-
Weight:15kg / 305m
Product Overview

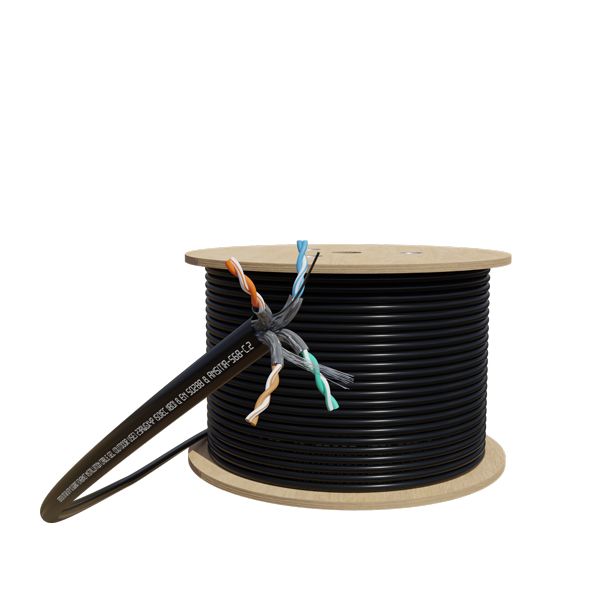

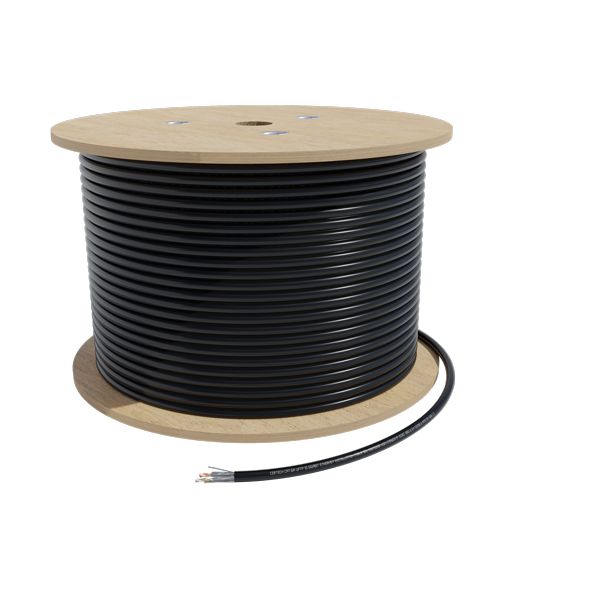

305m Cat6A Black U/FTP Gel Filled (Underground) Solid Cable Roll 500MHz
100% Bare Copper Cable
23AWGx4P
PE Jacket
AS/CA S008:2010 Approved
4K UHD Ready
Specifications
Cable Type: U/FTP
Jacket Material: PE
Conductor Material: Bare Copper Cable
Insulation Material: Skin Foam Skin PE
Cable Length: 305m
Cable Weight: 15kg/305m
Cable Diamater: 0.56
Cable Gauge: 23AWG
Jacket Thickness: 0.60±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 74%
Operating Frequency: 500MHz
Flame Test Method: No
Installation Temperature: -20 ~ +60 degrees celcius
Operating Temperature: -40 ~ +75 degrees celcius
Packaging: Wooden Drum
