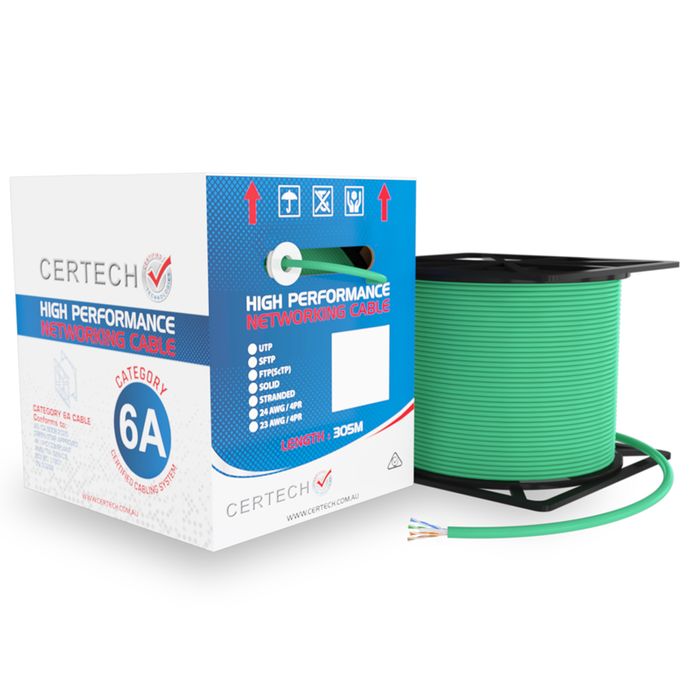

CERTECH 305M Cat6A 10G U/UTP Solid Cable, Green LSZH Jacket
Product Details
-
Product Type:Network & Data Cable - Cat6A U/UTP (Indoor)
-
Colour:Green
-
Material:LSZH Jacket
-
Product Width:320mm
-
Product Depth:380mm
-
Product Height:380mm
-
Operating Frequency:500MHz
-
Weight:15.2kg / 305m
Product Overview
The CERTECH Cat6A U/UTP cable consists of 4 x copper conductor twisted pairs separated by a pair divider for superior AXT performance, LSZH jacket and a strength member for improved pulling tension. CERTECH Cat6A cabling solutions support data transmission speeds of up to 10 gigabits per second (10 Gbps). When combined with CERTECH Cat6A jacks and installed by a CERTECH certified installer, the permanent links exceed the performance criteria outlined is AS 11801 (1-6) and certifiable through CERTECH’s 25 Year Certified Warranty Program.
Features:
• 305m Cat6A U/UTP reel in a box 500 MHz
• 100% bare copper cable
• 23AWGx4P
• LSZH Jacket
• Integrated pair seperator
• Internal strength member
• ROHS, RCM and REACH compliant
• GECA Claim Authenticated (PVC free)
Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper Cable
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Weight: 15.2kg/305m
- Cable Diamater: 0.57
- Cable Gauge: 23AWG
- Jacket Thickness: 0.70±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees celcius
- Operating Temperature: -40 ~ +75 degrees celcius
- Packaging: Reel in Box
