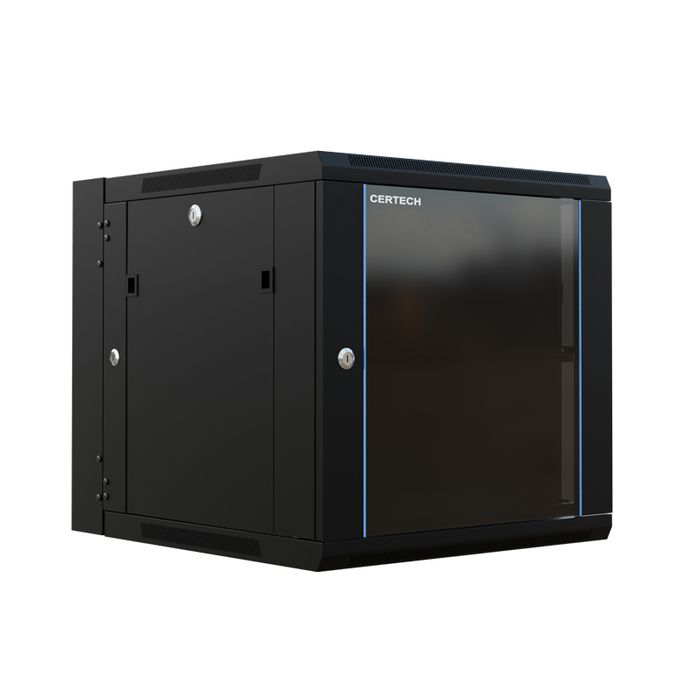

CERTECH 9RU 550mm Deep Swing Frame Cabinet

Stock Code:
NCSWG9550
Height:
500mm
Width:
600mm
Depth:
550mm
Static Loading Capacity:
60kgs
Make an Enquiry
NCSWG9550
CERTECH 9RU 550mm Deep Swing Frame Cabinet

Product Details

  • Product Type:
    Double Section Wall Mount Series
  • Static Loading Capacity:
    60kgs
  • Colour:
    Black (RAL 9004) powder coated paint
  • Material:
    SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Surface Finish:
    Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
  • Mounting Hole Type:
    Square
  • Door Style:
    Australian approved toughened glass front door
  • Side Panels:
    Single piece, lockable & removable
  • Inclusions:
    2 x fans, 1 x shelf, 10 x cage nuts
  • Security:
    Keyed alike door, side panels & rear swing frame
  • Assembly:
    Supplied complete
  • Warranty (Rack):
    2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
  • Warranty (Fans):
    1-year warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92
  • Product Width:
    600mm
  • Product Depth:
    550mm
  • Product Height:
    500mm

Product Overview

CERTECH Double Section Wall Mount Series racks are the perfect wall mount rack for any small home office/business installation, where access to the rear of the rack is required. All racks are manufactured around universal 19” standards, providing the ability to use our racks with universal 19” equipment from other vendors & manufacturers. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTECH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

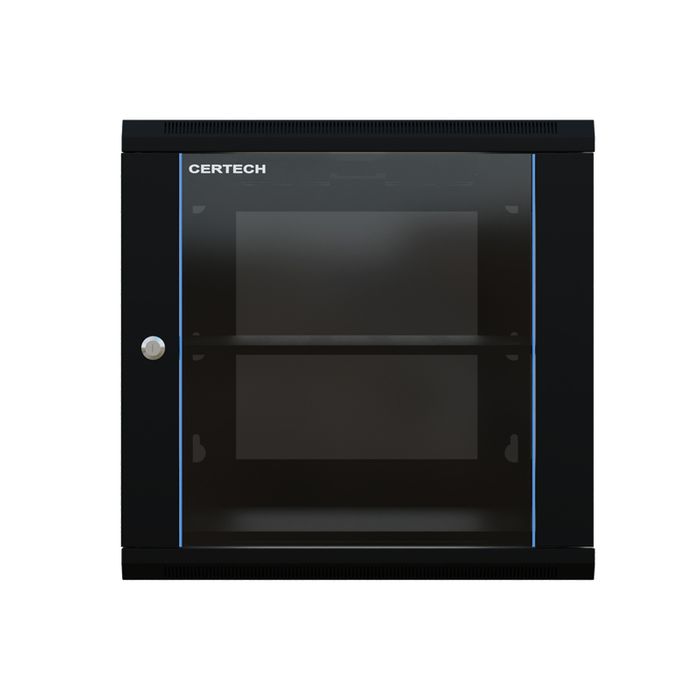

• Front Door
Australian Approved toughened glass front door. Can be hinged left to right, or right to left.

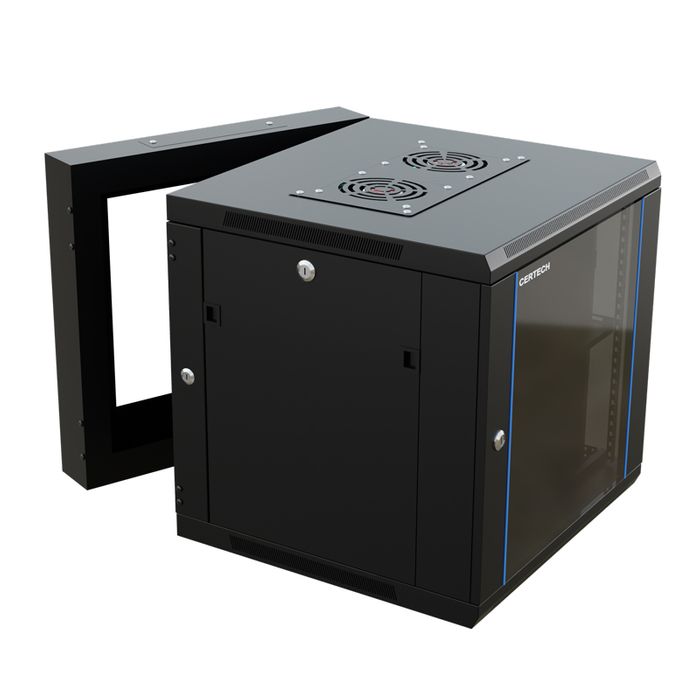

• Rear Swing Frame
Fitted with a reversible swing frame, providing rear access to the rack. The reversible feature allows the rack to be opened left to right, or right to left.

• Fans
Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.

• Cable Entry
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.

• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.

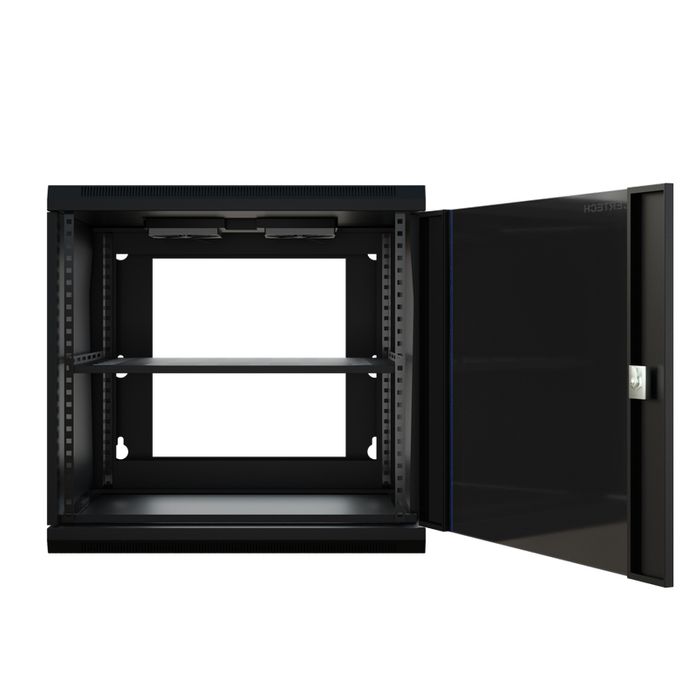

• Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

• Side Panels
Single piece lockable, removable side panels

• Integrated Earthing
Multiple earthing points & wires are fitted throughout the rack.
