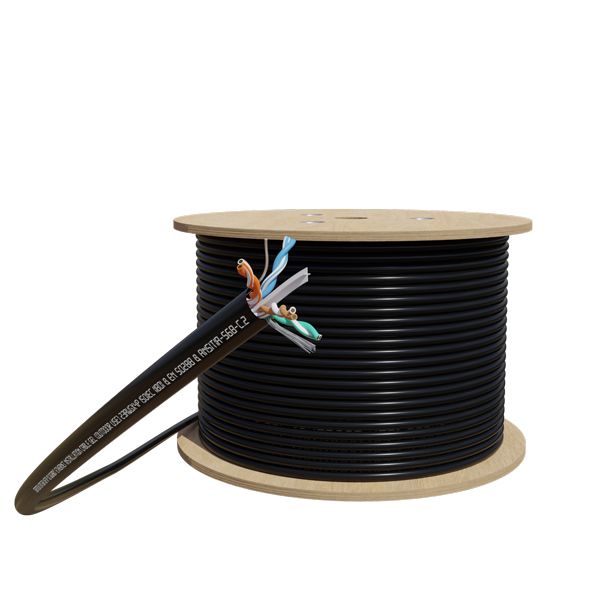

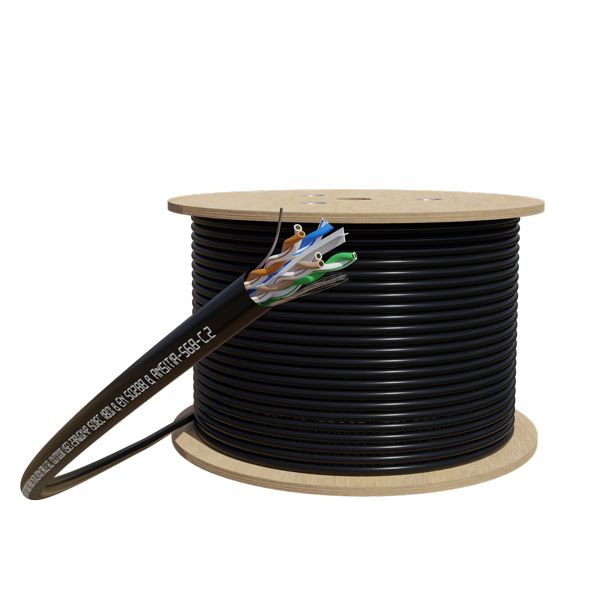

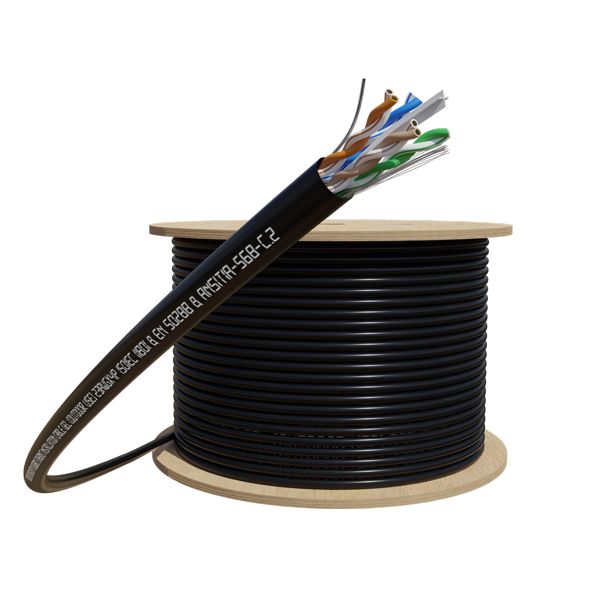

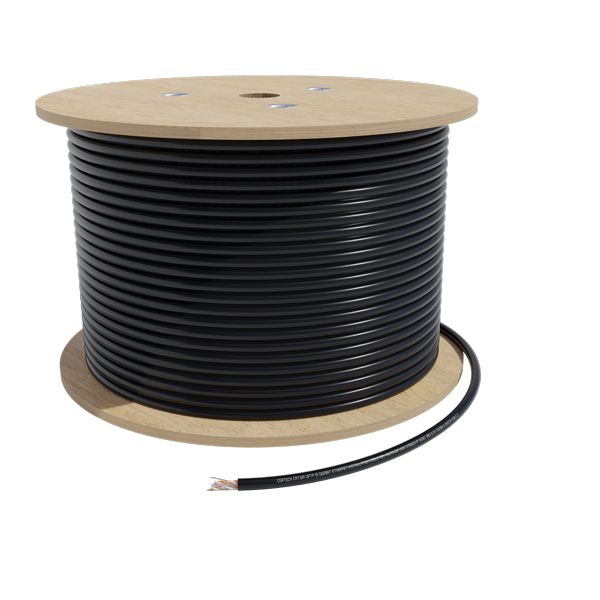

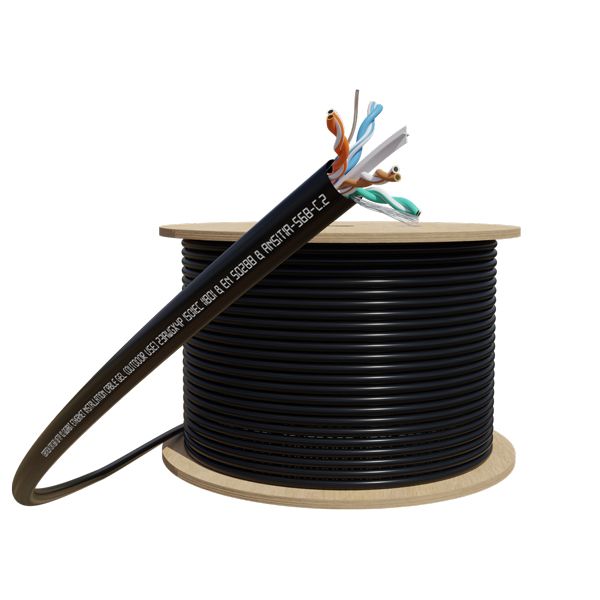

CERTECH 305M Cat6 U/UTP Solid Gel Filled (Underground) Cable
Product Details
-
Product Type:Network & Data Cable - Cat6 U/UTP (External Underground)
-
Colour:Black
-
Material:UV Stabilised PE Jacket
-
Product Width:370mm
-
Product Depth:370mm
-
Product Height:240mm
-
Operating Frequency:250MHz
-
Weight:14.3kg / 305m
Product Overview
305m Cat6 Black UTP Gel Filled Solid Cable Roll 250MHz
100% Bare Copper Cable
23AWGx4P
PE Jacket
AS/CA S008:2010 Approved
4K UHD Ready
Note, this cable will not fit standard RJ45 plugs.
Required plugs for terminating are as follows: JFTPC6A/SH, 100029C, 202048J
Specifications
Cable Type: UTP
Jacket Material: PE (UV Stabilised)
Conductor Material: Bare Copper Cable
Insulation Material: HDPE
Cable Length: 305m
Cable Weight: 14.3kg/305m
Cable Diamater: 0.57
Cable Gauge: 23AWG
Jacket Thickness: 0.60±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 69%
Operating Frequency: 250MHz
Flame Test Method: No
Installation Temperature: -20 ~ +60 degrees celcius
Operating Temperature: -40 ~ +75 degrees celcius
Packaging: Wooden Drum
