CERTECH Vertical Wall Mount Cabinet 2RU Horizontal, 6RU Vertical

Stock Code:
NCVWM2H6V
Height:
1070mm
Width:
650mm
Depth:
320mm
Static Loading Capacity:
100kgs
Make an Enquiry
NCVWM2H6V
CERTECH Vertical Wall Mount Cabinet 2RU Horizontal, 6RU Vertical

Product Details

  • Product Type:
    Vertical Wall Mount Series
  • Static Loading Capacity:
    100kgs
  • Colour:
    Black (RAL 9004) powder coated paint
  • Material:
    SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Surface Finish:
    Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
  • Mounting Hole Type:
    Square
  • Security:
    Lockable hinged door
  • Assembly:
    Supplied complete
  • Warranty (Rack):
    2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
  • Warranty (Fans):
    1-year warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92
  • Product Width:
    650mm
  • Product Depth:
    320mm
  • Product Height:
    1070mm

Product Overview

CERTECH Vertical wall mount racks have been designed as a solution for all wall mount rack installations, where limited space is available. This design allows equipment to be mounted vertically up to 900m, whilst only protruding 230, 320 & 410mm off the wall (pending model). All racks are manufactured around universal 19” standards, providing the ability to use our racks with universal 19” equipment from other vendors & manufacturers. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTEH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

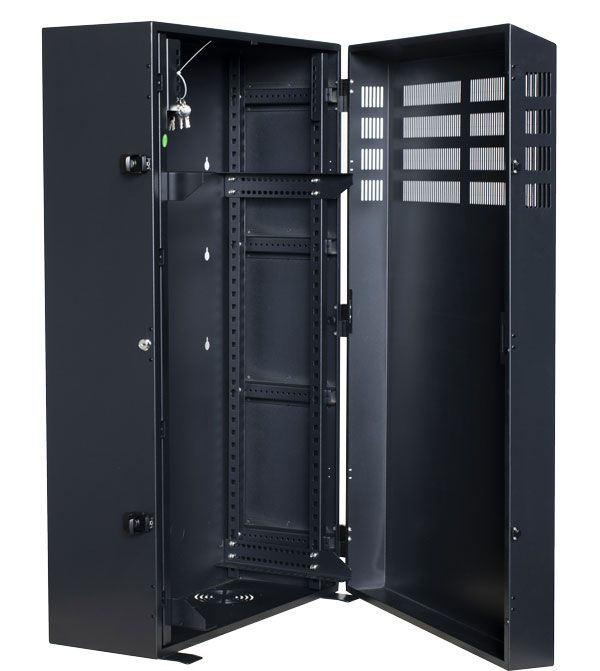

• Front Door
Front hinged door, opening left to right, or right to left.

• Fans (optional accessory)
Provisions for 2 x fans included at the bottom of the rack.

• Cable Entry
Multiple cable entry points are situated on the top, bottom & rear panel of the rack.

• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.

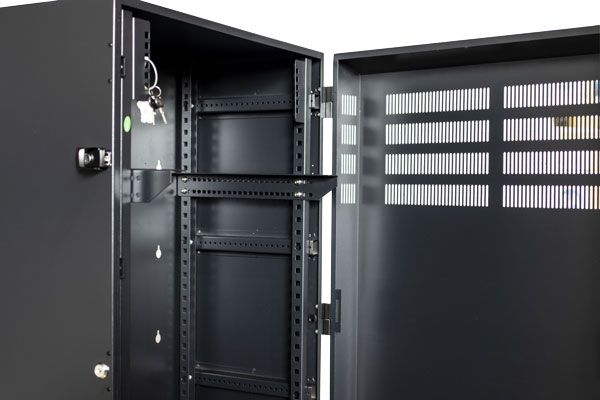

• Mounting Rails
Vertical & horizontal mounting rails can be adjusted to suit various sizes of equipment.

• Loading Capacity
With a solid cold-rolled steel design, this wall mount rack will hold up to 100kgs.
