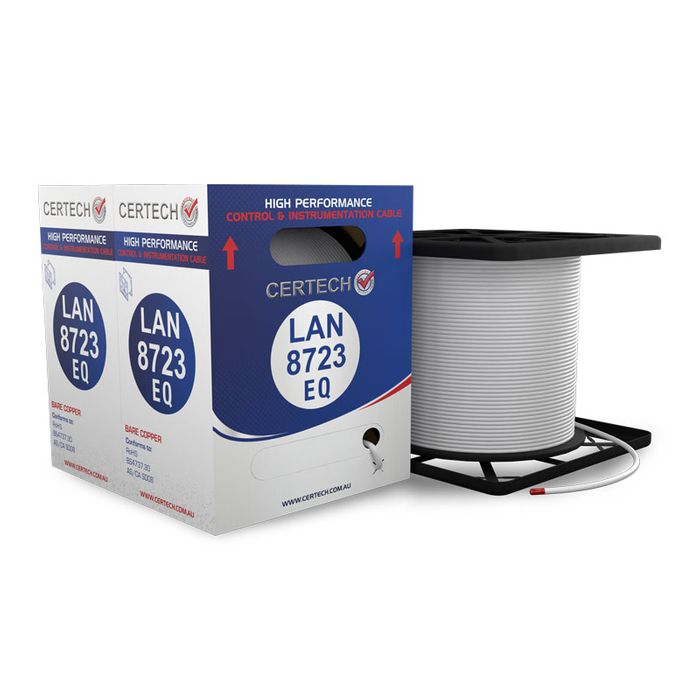

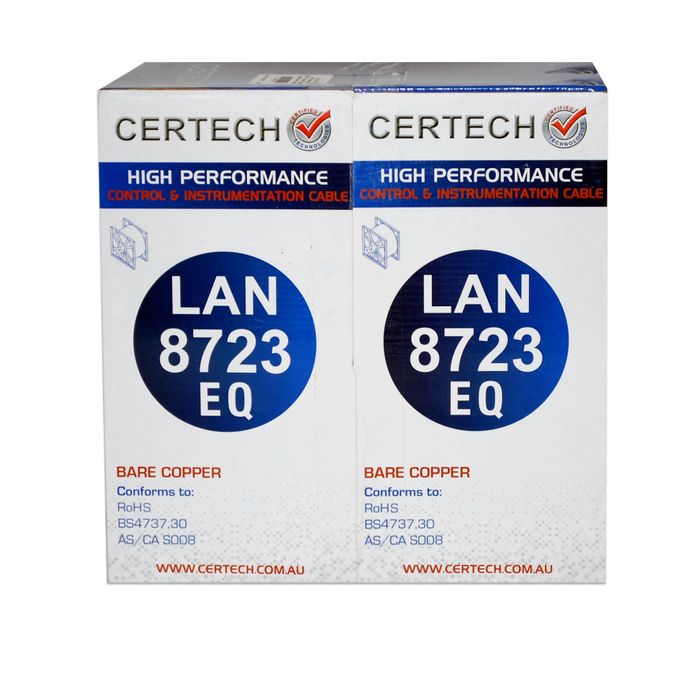

CERTECH 300M LAN 8723 Equivalent Cable, Grey LSZH Jacket
Product Overview
Description
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors,
polypropylene insulation, twisted pairs, individually AL/PET shielded, 24 AWG stranded tinned
copper drain wire. Belden 8723 equivalent cable
Inner conductor
Material: Tinned copper wire, stranded
Stranding: 7x0.254mm
Nom. O.D.: 0.76mm
AWG Size: 22 AWG
Insulation
Material: Polypropylene - PP
Nom. O.D: 1.25±0.05mm
Nom. Wall Thickness: 0.25±0.05mm
Colour Codes: Red & black (Pitch 50±3mm), green & white (Pitch 55±3mm), twisted pair
Shielding
Material: AL/pet tapes
Wrapping: Each pair wrapped by AL/pet tapes individually, AL side outwards, coverage≥125%
Drain Wire
Material: Tinned copper wire, stranded
Stranding: 7x0.20mm
Gauge: 24AWG
Cable Assembly
Two pairs twisted, pitch 80±5mm, AL side outwards, against TC drain wire.
Sheath
Material: Grey LSZH
Nom. External O.D.: 5.0±0.30mm
Nom. Wall Thickness: 0.55±0.05mm
Cable Finish: Typically ropy
Electrical Characteristics
Inner conductor DCR: 52 Ohm / Km
Capacitance, Core to core: 75.3±15 pF/m
Characteristic Impedance: 60±5 Ohm
Inductance: 0.41±0.02 uH/m
Voltage Rating: 300V
Operating Temp. Range; -20C to +75C
Packing: 300m pull box
