CERTECH 24 Port 19" Cat6 UTP Modular Patch Panel, Complete with 24 x Cat6 Black Keystone Jacks
Product Overview

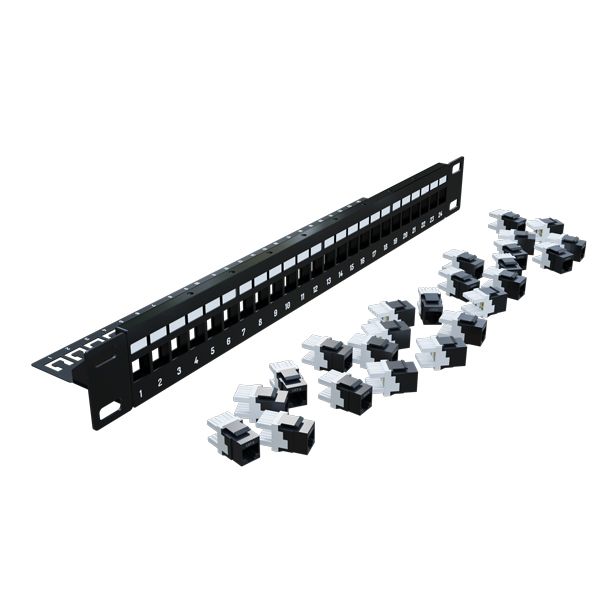

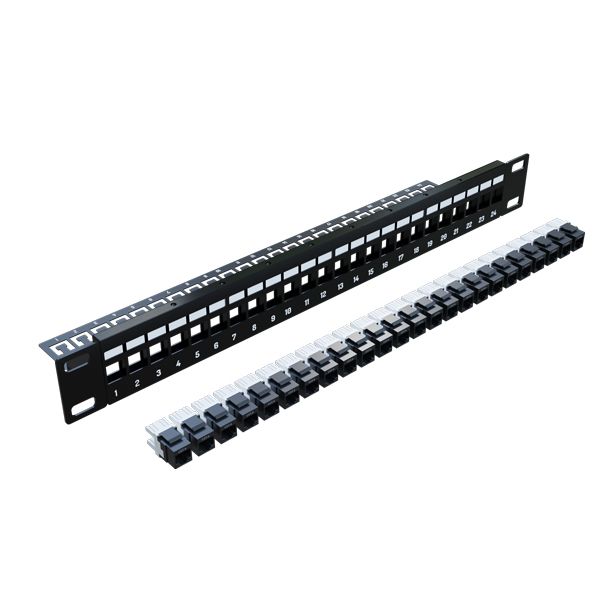

CERTECH 24 Port 19" Cat6 UTP Modular Patch Panel, complete with 24 x Cat6 UTP Keystone Jacks
FEATURES:
The PP24C6K is made of cold rolled steel and accepts up to 24 Keystone jacks (included).

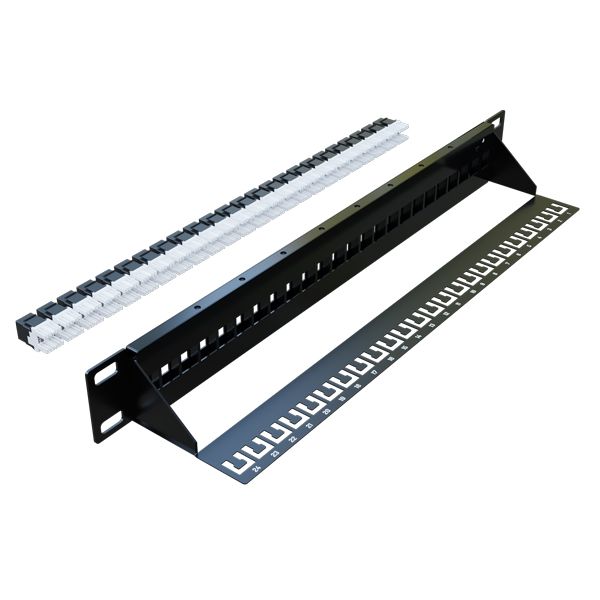

The removable cable management bar is also made of steel.
Keystone jacks can be terminated to the cable and then snapped into each individual port on the patch panel.
Dims (including rear support bar): 482 (W) x 44 (H) x 94 (D)
Coating: Black Powder Coated
Dual IDC connector can accept 23-26 AWG solid and stranded cables
Supports both T568 A&B wiring
Performance conforms to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specification
ROHS Compliant
REACH Compliant
APPLICATIONS:
10Base-T/100Base-Tx
100Base-T4/1000Base-Tx
ATM-25/ATM-51/ATM-155
100VG-AnyLan
TR-4/TR-16 Active/TR16 Passive
ELECTRICAL SPECS:
Dielectric Strength : 1000V RMS for 1min
Insulation Resistance : 10 M min
Contact Resistance : 2 M per contact
Temperature Range : 10 to 60 max
Humidity : 10%-65%
PHYSICAL SPECS:
High impact plastic housing, Flame retardant UL 94V-0
IDC Contact : 100 inch nickel plated over phosphor bronze
IDC Operating life : Minimum 250 Re-terminations
Jack Contact : Phosphor bronze, 50 inch gold plating over nickel plating in contact area
Jack Operating life : Minimum 750 insertions
PCB : FR-4, 1.6mm thickness
