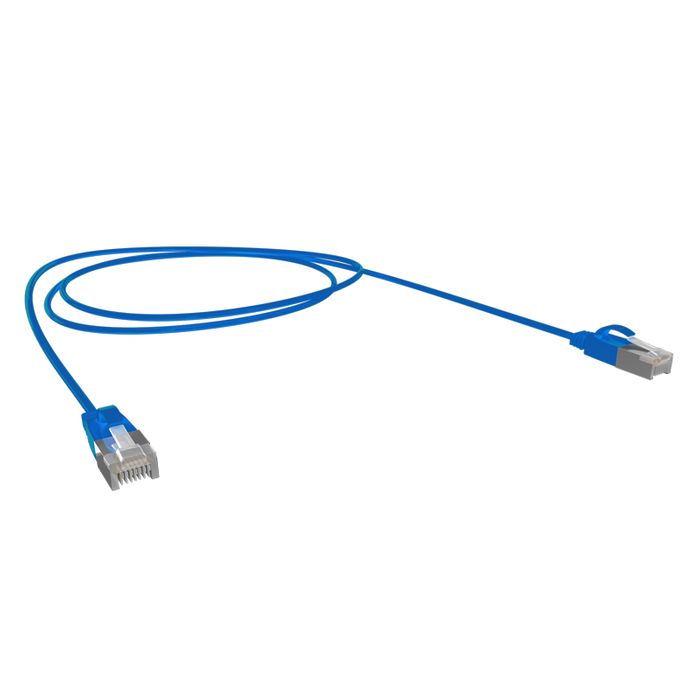

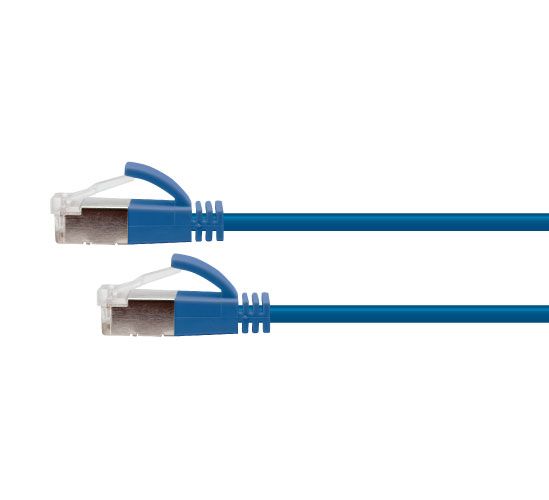

CERTECH Cat6A 34AWG S/FTP 10G RJ45 Patch Lead, Blue LSZH Jacket, 1.25m
Stock Code:
NPLSHC6ABL1.25
NPLSHC6ABL1.25
CERTECH Cat6A 34AWG S/FTP 10G RJ45 Patch Lead, Blue LSZH Jacket, 1.25m
Product Details
-
Product Type:Cat6A S/FTP Super-Thin (34AWG) Patch Leads
-
Colour:Blue
-
Material:LSZH Jacket
-
Operating Frequency:500MHz
Product Overview
CERTECH Cat6A S/FTP Super-Thin (34AWG) 10G Patch Leads
Upgrade your home or office network to speeds up to 10Gbps.
The super-thin design of these leads will drastically reduce bottlenecks in file transfers, improve daily redundancy routine on networked drives, and will also lower crosstalk.
Features
- Produced by an ISO9001 & ISO14001 certified manufacturer
- 100% tested & channel certified by 3P, UL & ETL
- AS/CA S008:2020 Approved
- 'PVC Free' claim authenticated by GECA
- Covered by a lifetime warranty
- Available in 10 colours
Specifications
- Conductor Gauge: 34AWG
- Conductor Type: Stranded
- Performance Level: 100% Channel Tested
- Cable Construction: S/FTP
- Jacket Material: LSZH
- Plug Type: RJ45 8P8C
- Plug Housing Material: PVC
- Plug Shell Material: Brass
- Connector End A: RJ45 Modular Plug
- Connector End B: RJ45 Modular Plug
- Nominal Cable Outer Diamater: 4.0mm +/- 0.3mm
- Wiring Scheme: T568A
- Maximum Storage Temperature: 60°C
- Maximum Operating Temperature: 60°C
- Minimum Operating Temperature: -20°C
- Flammability Rating: IEC60332-1-2
- Standards Met: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-10-2 & IEC60332-1-2
- PoE Compatibility: PoE++ Type 3, rated to 60 Watts
