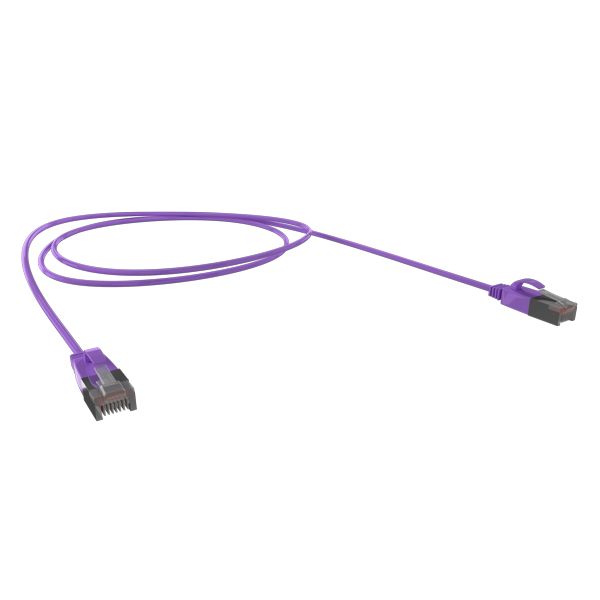

CERTECH Cat6A 34AWG S/FTP 10G RJ45 Patch Lead, Purple LSZH Jacket, 2.5m

Stock Code:
NPLSHC6APP2.5
NPLSHC6APP2.5
CERTECH Cat6A 34AWG S/FTP 10G RJ45 Patch Lead, Purple LSZH Jacket, 2.5m

Product Details

  • Product Type:
    Cat6A S/FTP Super-Thin (34AWG) Patch Leads
  • Colour:
    Purple
  • Material:
    LSZH Jacket
  • Operating Frequency:
    500MHz

Product Overview

CERTECH Cat6A S/FTP Super-Thin (34AWG) 10G Patch Leads


Upgrade your home or office network to speeds up to 10Gbps.
The super-thin design of these leads will drastically reduce bottlenecks in file transfers, improve daily redundancy routine on networked drives, and will also lower crosstalk.

Features

  • Produced by an ISO9001 & ISO14001 certified manufacturer
  • 100% tested & channel certified by 3P, UL & ETL
  • AS/CA S008:2020 Approved
  • 'PVC Free' claim authenticated by GECA
  • Covered by a lifetime warranty
  • Available in 10 colours

Specifications

  • Conductor Gauge: 34AWG
  • Conductor Type: Stranded
  • Performance Level: 100% Channel Tested
  • Cable Construction: S/FTP
  • Jacket Material: LSZH
  • Plug Type: RJ45 8P8C
  • Plug Housing Material: PVC
  • Plug Shell Material: Brass
  • Connector End A: RJ45 Modular Plug
  • Connector End B: RJ45 Modular Plug
  • Nominal Cable Outer Diamater: 4.0mm +/- 0.3mm
  • Wiring Scheme: T568A
  • Maximum Storage Temperature: 60°C
  • Maximum Operating Temperature: 60°C
  • Minimum Operating Temperature: -20°C
  • Flammability Rating: IEC60332-1-2
  • Standards Met: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-10-2 & IEC60332-1-2
  • PoE Compatibility: PoE++ Type 3, rated to 60 Watts
