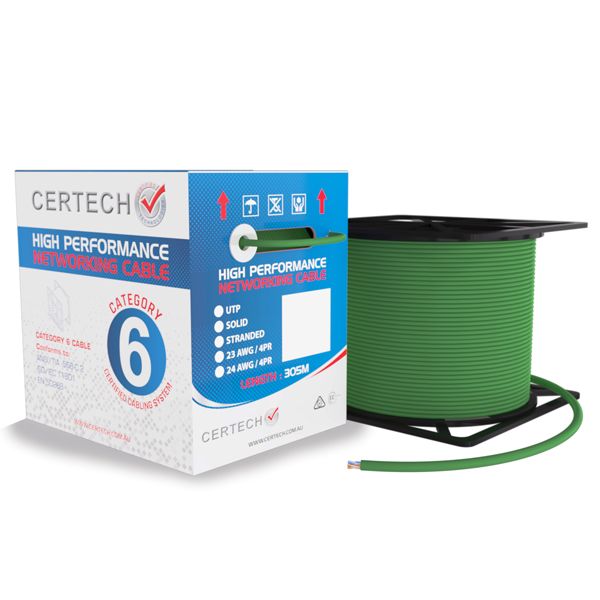

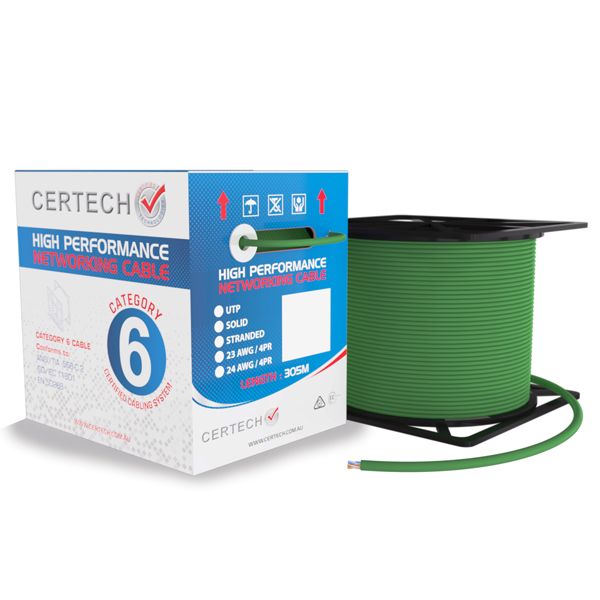

CERTECH 305M Cat6 U/UTP Solid Cable, Green LSZH Jacket
Stock Code:
NCC6LSZHGREEN
Height:
350mm
Width:
270mm
Depth:
330mm
NCC6LSZHGREEN
CERTECH 305M Cat6 U/UTP Solid Cable, Green LSZH Jacket
Product Details
-
Product Type:Network & Data Cable - Cat6 U/UTP (Indoor)
-
Colour:Green
-
Material:LSZH Jacket
-
Product Width:270mm
-
Product Depth:330mm
-
Product Height:350mm
-
Operating Frequency:250MHz
-
Weight:13.1kg / 305m
Product Overview
305m Cat6 Green UTP Solid Cable Roll 250MHz
100% Bare Copper Cable
23AWGx4P
LSZH Jacket
AS/CA S008:2010 Approved
4K UHD Ready
Specifications
Cable Type: UTP
Jacket Material: LSZH
Conductor Material: Bare Copper Cable
Insulation Material: HDPE
Cable Length: 305m
Cable Weight: 13.1kg/305m
Cable Diamater: 0.55
Cable Gauge: 23AWG
Jacket Thickness: 0.55±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 69%
Operating Frequency: 250MHz
Flame Test Method: IEC60332-1-2
Installation Temperature: -20 ~ +60 degrees celsius
Operating Temperature: -40 ~ +75 degrees celsius
Packaging: Reel in Box
