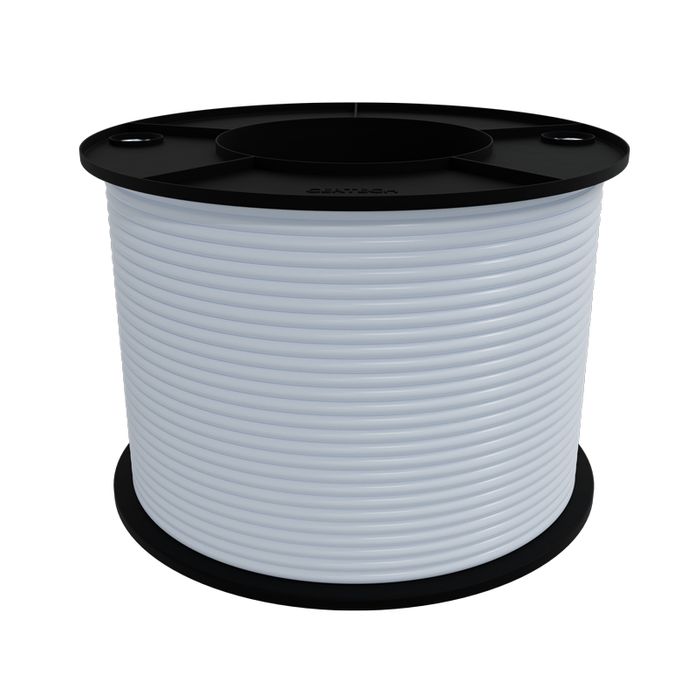

CERTECH 100M Figure 8 24/020 Cable, White LSZH Jacket w/ Black Stripe

Stock Code:
NSCFIG8LSZH100
Make an Enquiry
NSCFIG8LSZH100
CERTECH 100M Figure 8 24/020 Cable, White LSZH Jacket w/ Black Stripe

Product Overview

Figure 8, 24/020 White LSZH Jacket w/ Black Stripe



Conductor

  • Material: Plain annealed bare copper, stranded
  • Construction: 24/020mm
  • Nom. OD: 1.57mm
  • Nom. Cross Section Area: 1.5mm²
  • Max. DCR @ 20C: 12.4 ohm/km



Sheath

  • Material: White LSZH Jacket
  • External OD: 3.2x6.9mm
  • Nom. Wall Thickness: 0.80mm



Other

  • Operating Temp. Range: -20 ~ 75°C
  • Packaging: 100/250m Reel
  • Cable Weight: 5.3kg/100m
