CERTECH 200M 6 Core 14/020 Shielded Security Cable, White LSZH Jacket
Stock Code:
NSC6CLSZH200SH
Height:
310mm
Width:
220mm
Depth:
315mm
NSC6CLSZH200SH
CERTECH 200M 6 Core 14/020 Shielded Security Cable, White LSZH Jacket
Product Overview
6 Core 14/020 Shielded Security Cable, White LSZH Jacket
AL/pet tape shielded, with tinned copper drain wire.
Application
- For interconnect wiring, suitable for use in security & inturder alarm systems.
- For use in low voltage/low current applications
- Not for mains connection
Conductor
- Material: Stranded annealed bare copper
- Construction: 14/020mm
- Nom. OD: 0.86mm
- Nom. Cross Section Area: 0.44mm²
- Max. DCR @ 20C: 44.8 ohm/km
Insulation
- Nom. OD: 1.50mm
- Nom. Wall Thickness: 0.32mm
- Colour Code & Lay Up: Black/White/Red/Blue/Green/Yellow, 6 Cores Stranded
Drain Wire
- Material: Tinned copper wire, stranded
- Construction: 7/020mm
Shielding
- Material: AL/pet tape, AL side inward against the drain wire, helically wrapped
Sheath
- Material: White LSZH Jacket
- External OD: 5.80±0.20mm
- Nom. Wall Thickness: 0.55±0.05mm
Other
- Operating Temp. Range: -40 ~ 75°C

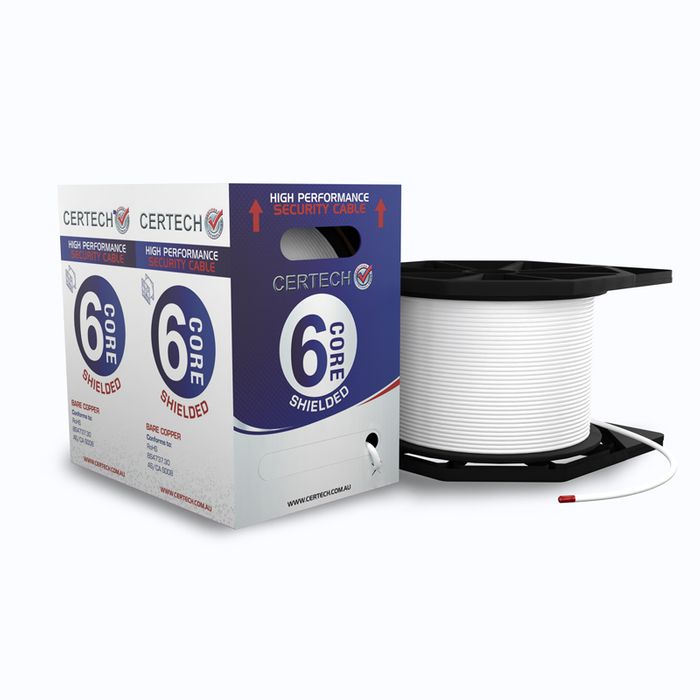

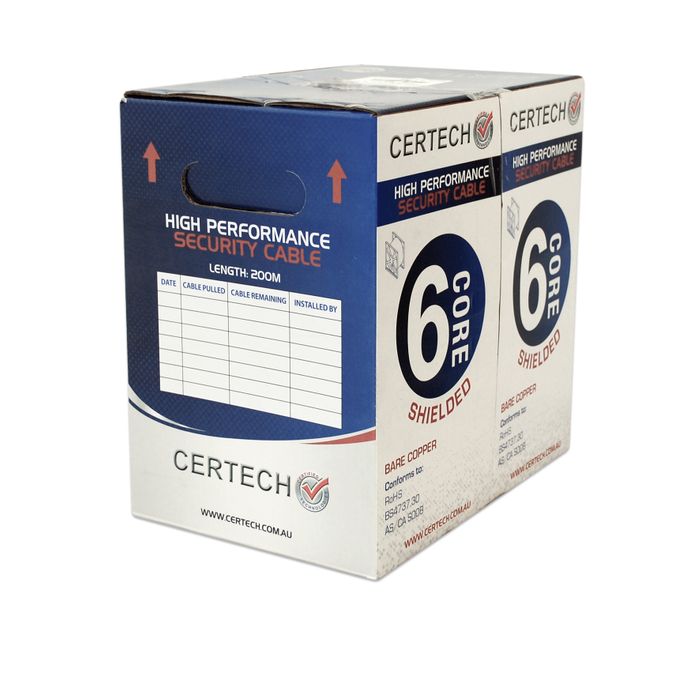

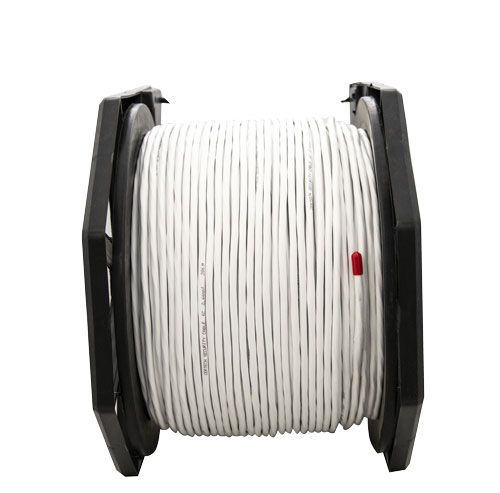

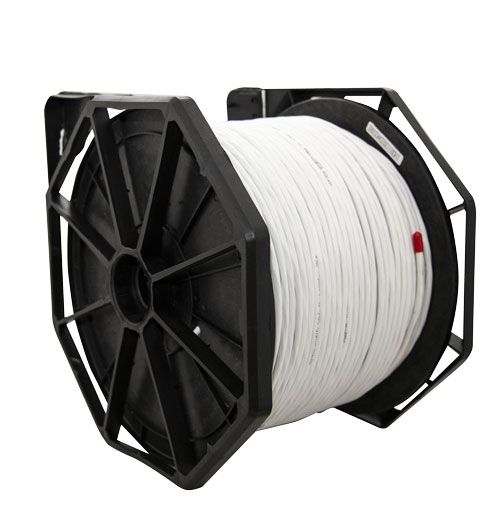

- Packaging: 200m Reel-In-Box
- Cable Weight: 10.6kg/200m
