EDIMAX 8 Port Gigabit PoE+ Long Range Managed Switch w/ 2 x Gigabit RJ45 & 2 x SFP Combo Ports
Product Overview

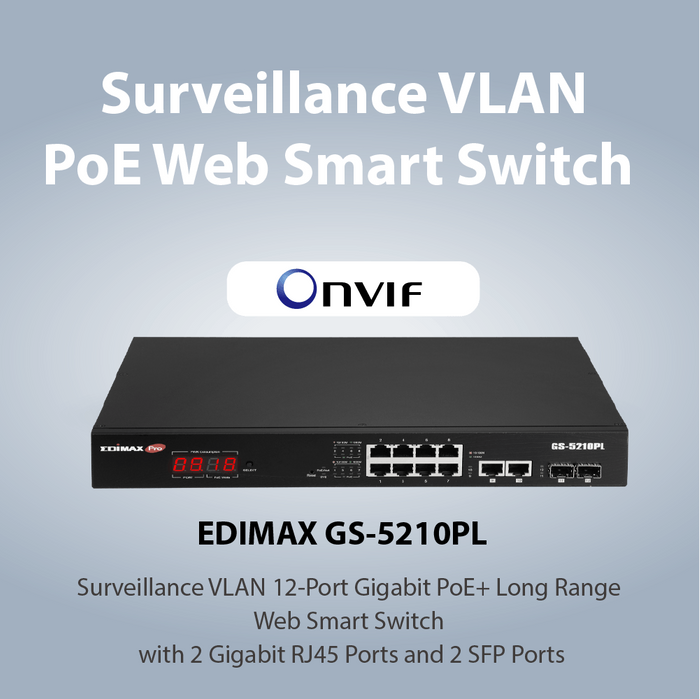

EDIMAX Surveillance VLAN 12 Port Gigabit PoE+ Long Range WebSmart Switch with 2 Gigabit RJ45 Ports and 2 SFP Ports
Features
- Supports ONVIF standard which is compatible with working ONVIF compliant profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
- Guaranteed PoE long distance to 200 metres
- PoE powered devices (PD) alive check to enhance the reliability of the network. If a PD fails to respond, the GS-5210PL will reboot the PD.
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoE-enabled devices.
- Dual-firmware image for robust failover mechanisms. It can activate the backup firmware right away while the current one faces problems.
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality.
- 4-digit LED display showing total PoE power, available power, and power consumption.
- Auto-detection of powered devices (PD) and power consumption levels.
- Power backfeed protection to avoid damaging the PoE ports.
- DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring.
ONVIF Compliant| For Quick Install of Security Devices
With ONVIF standards, the GS-5210PL provides system integrators easy setup, quick discovery, configuration & control of ONVIF conformant products on the network. Just plug and play.
Beyond Security | All Fits Together
The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF standard, which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With the 24Gbps backplane bandwidth and a forwarding rate of 17.8Mpps, the GS-5210PL provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5210PL has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.

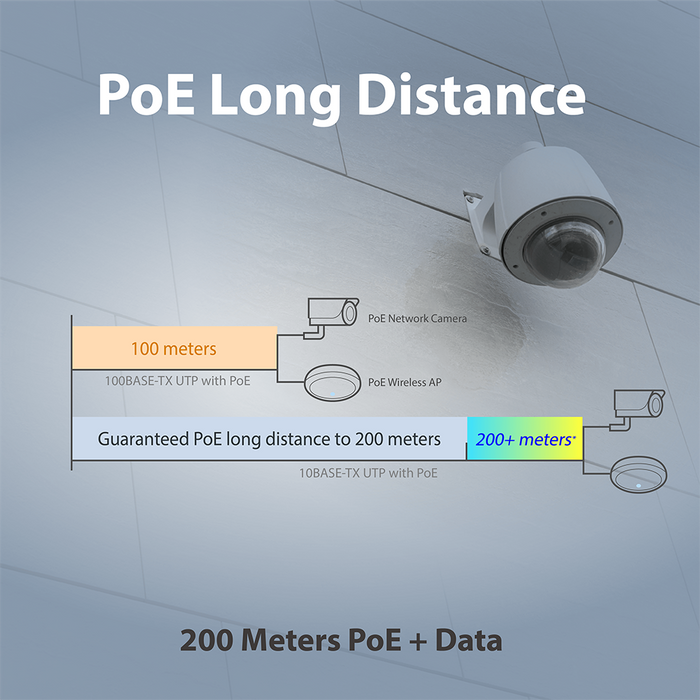

Guaranteed 200 Metres | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5210PL long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
4-Digit LED Display | Knowing Instant Power Data
In addition to a web-based GUI to keep track of port power, the GS-5210PL features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
