EDIMAX 8 Port Gigabit PoE+ Managed Switch w/ 2 SFP Slots
Product Overview

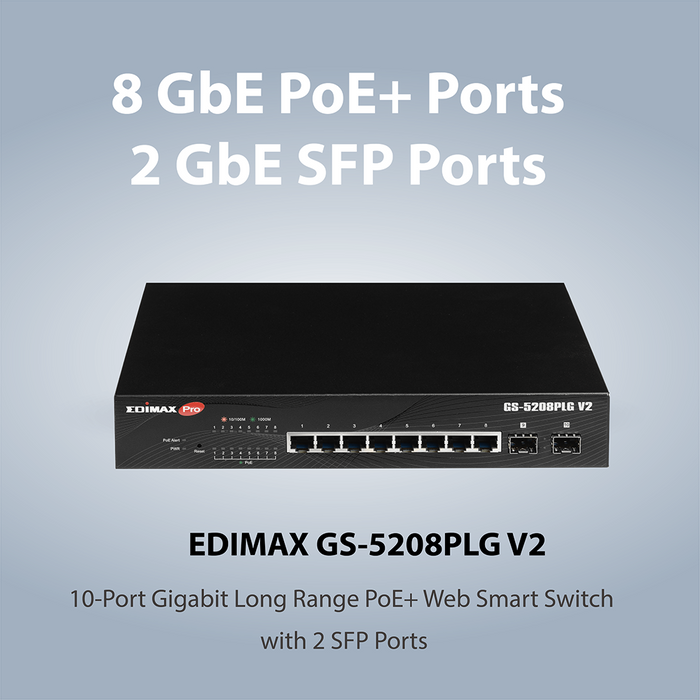

EDIMAX 8 Port Gigabit PoE+ WebSmart Switch w/ 2 SFP Ports
Features
- 8 Gigabit PoE+ ports and 2 Gigabit SFP uplink ports
- IEEE 802.3af/at PoE/PoE+ compliant
- Up to 30W per port (total power budget of 85W) for powering PoE-enabled devices
- Guaranteed PoE long distance to 200 metres
- Auto-detection of powered devices (PD) and power consumption levels
- Auto fault-detection on over/under current & voltage
- 20Gbps switch capacity and 14.88Mpps forwarding rate
- 4K MAC address table and 9KB jumbo frame
- Supports QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.
- Rack-mount design (rack-mount kit included)
Foster Global Businesses | Buld Your High Performing Company

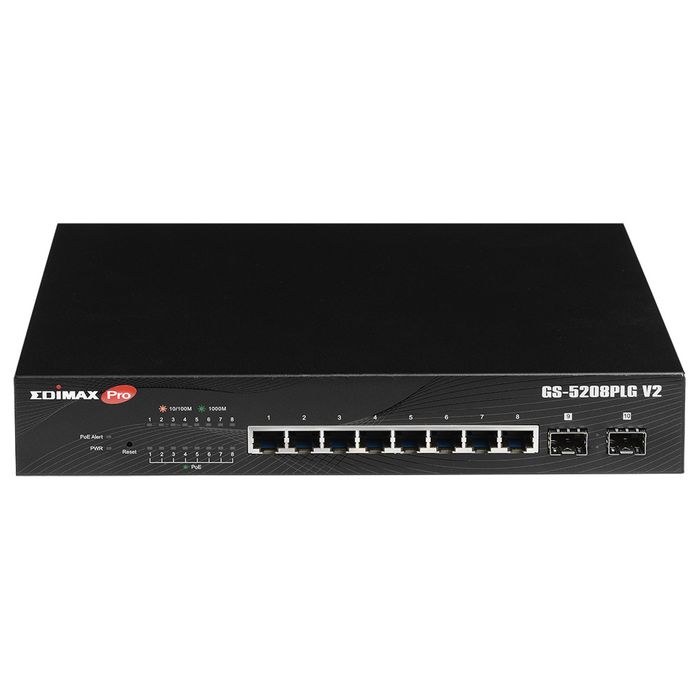

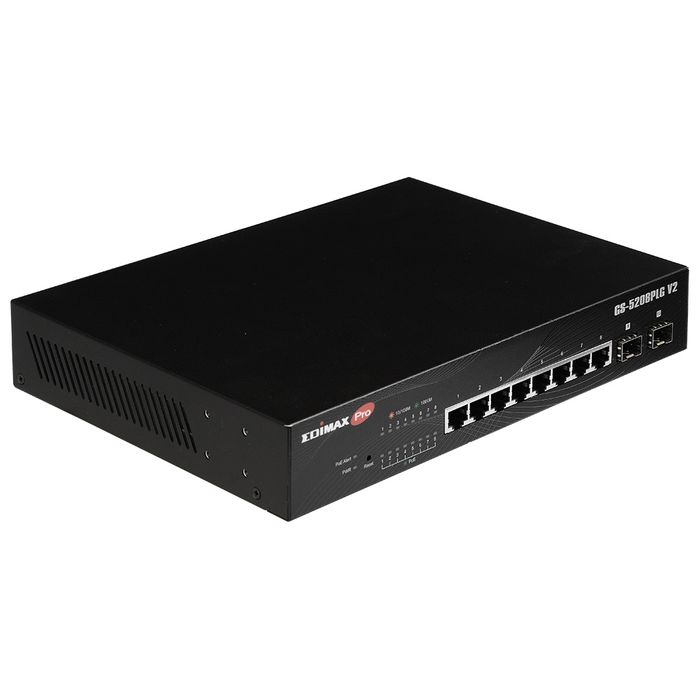

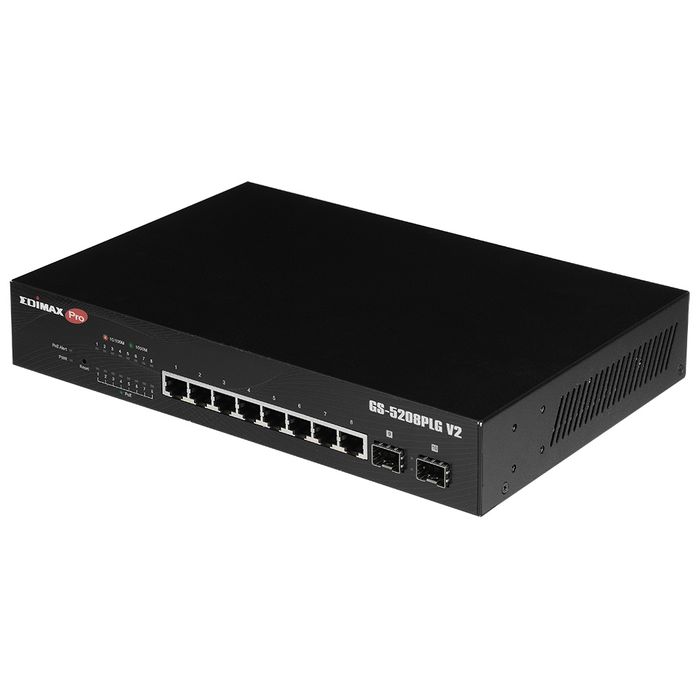

The EDIMAX Pro GS-5208PLG V2 is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for small to medium network environments, its standard 19-inch 1RU rack-mount brackets allow for integration with the most widely used mounting systems on the market. The EDIMAX GS-5208PLG V2 is a superb choice to boost your network environments performance and efficiency.

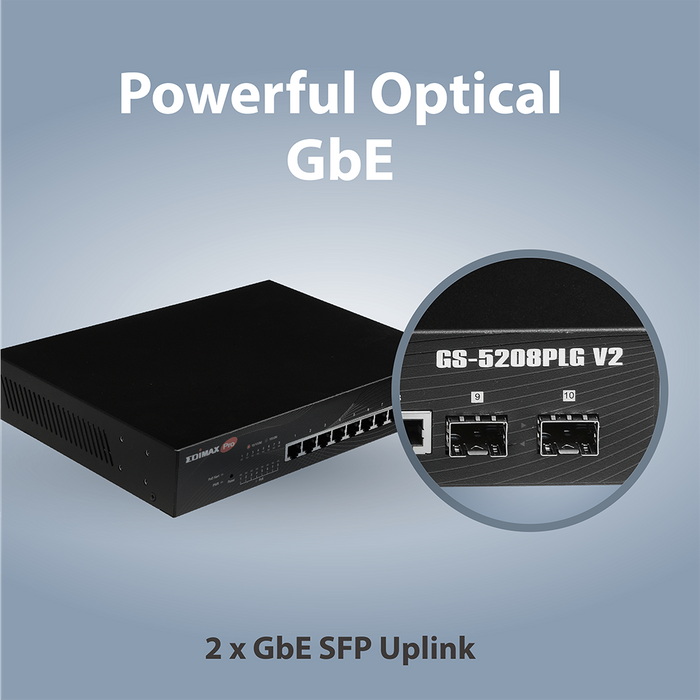

Powerful Optical GbE | 2 x Gigabit SFP Uplink Ports
8 GbE ports for high-speed connections and 2Gbps of fibre optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retail stores, or remote workgroup environments for larger network acccess.
Let Safety be Known
The built-in power backfeed protection/PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.

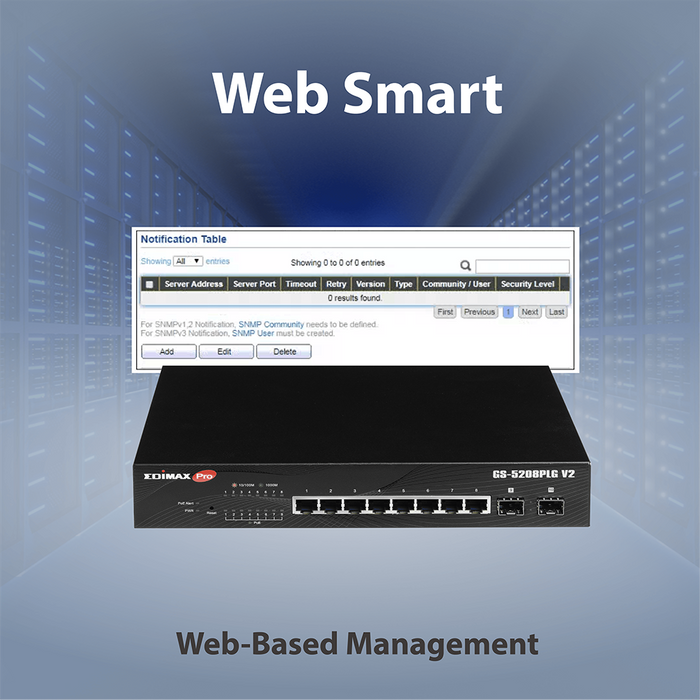

Web Smart Management
The web-based management features include QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.

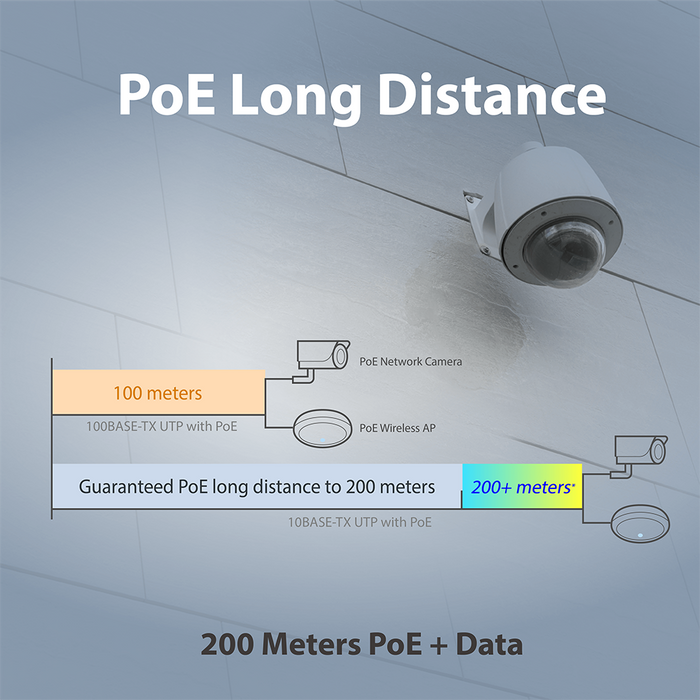

Guaranteed 200 Metres | Going the Distance
While general Ethernet switches have a distance restriction of 100 metres, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 metres at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VOIP phones, access points and PoE enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to acoid damaging the PoE ports with the non-standard PSE (Power Sourcing Equipments) are connected.
