Platinum Tools ezEX44 Shielded CAT6 Connector w/ Internal Ground, 50pc Jar

Stock Code:
202050J
Make an Enquiry
202050J
Platinum Tools ezEX44 Shielded CAT6 Connector w/ Internal Ground, 50pc Jar

Product Overview

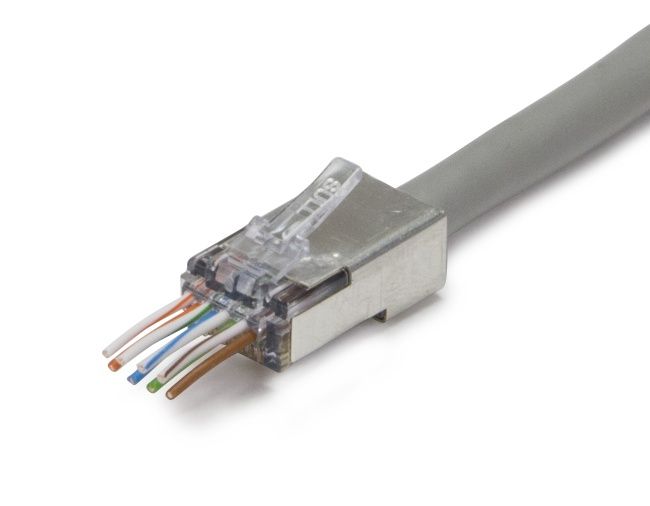

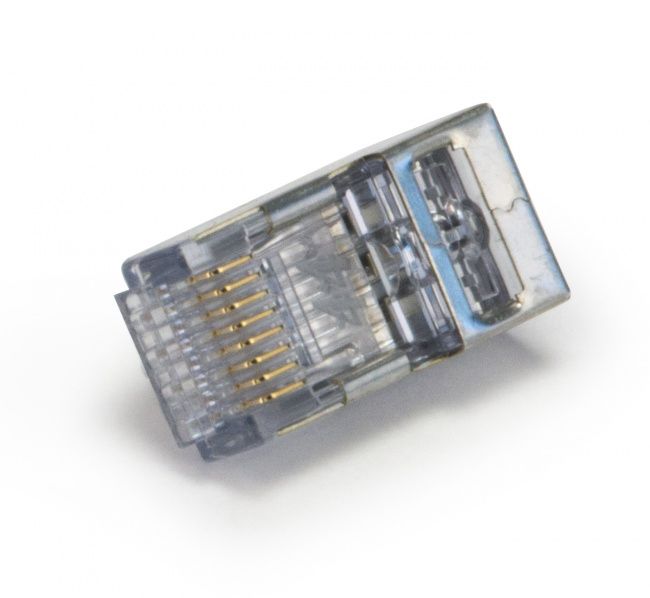

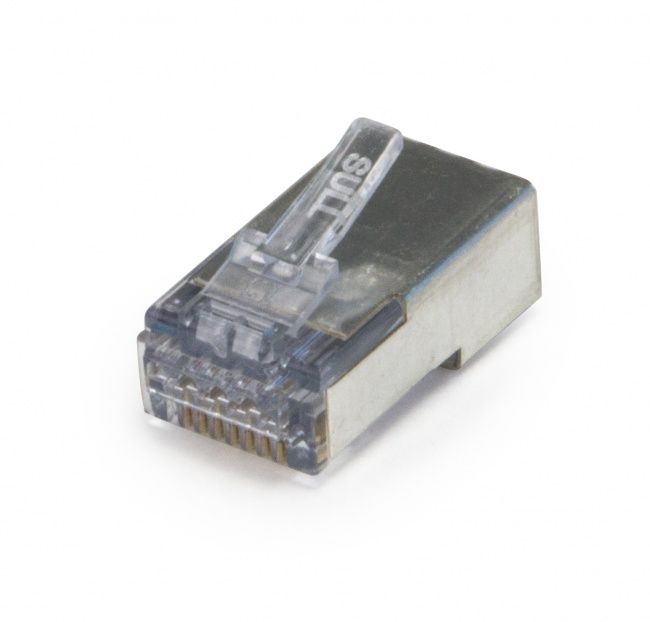

The shielded, patented ezEX-RJ45 connector is designed for larger cables and conductors. This plug features a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 and is terminated with the EXO Crimp Frame & EXO-EX Die (100061C).



Features

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design. No bars or liners
  • Shielded Cat5e/6 compliant
  • Insulation diamater (Conductor) - Size range: 0.039" ~ 0.044" (1.0~1.12mm)
  • Max outer diamater: 0.280" (7.1mm)
  • 50 micron gold plated contacts
  • Solid or stranded 22-24AWG
  • TAA/TIA/RoHS, UL & FCC compliant
  • Made in the USA
