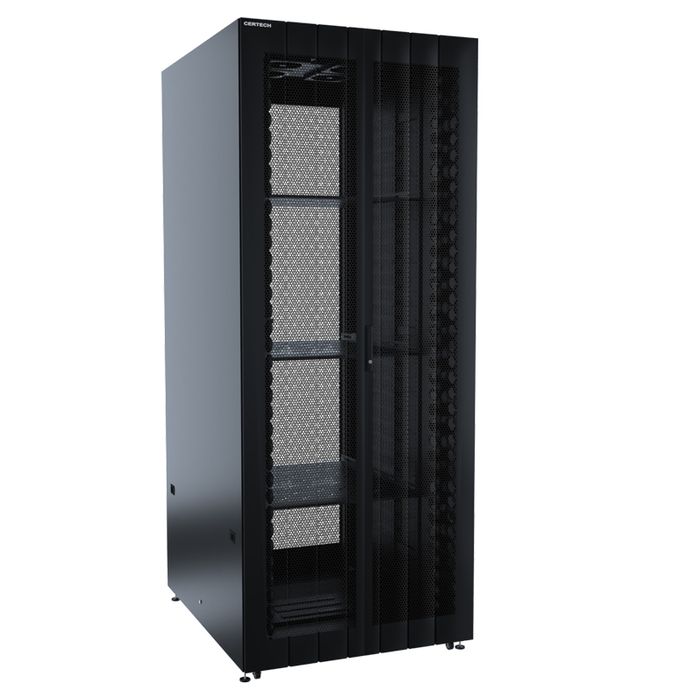

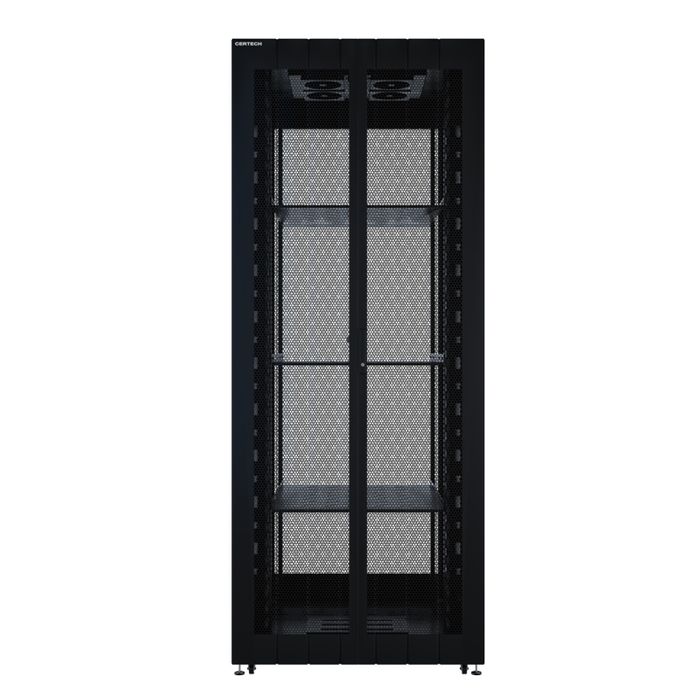

CERTECH 45RU 800 (W) x 900 (D) Benchmark Series Server Rack

Stock Code:
NSRHD458X9
Height:
2185mm
Width:
800mm
Depth:
900mm
Static Loading Capacity:
1500kgs
Make an Enquiry
NSRHD458X9
CERTECH 45RU 800 (W) x 900 (D) Benchmark Series Server Rack

Product Details

  • Product Type:
    NSR Benchmark Series - 800mm Wide
  • Static Loading Capacity:
    1500kgs
  • Colour:
    Black (RAL 9004) powder coated paint
  • Material:
    SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Surface Finish:
    Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
  • Mounting Hole Type:
    Square
  • Door Style:
    Bi-fold front & rear perforated steel, honeycomb style
  • Side Panels:
    Single piece, removable
  • Inclusions:
    4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet
  • Cable Management:
    Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays
  • Security:
    Keyed alike doors & side panels
  • Assembly:
    Supplied complete. Double pipe profile frame connected by "3T" system
  • Warranty (Rack):
    2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
  • Warranty (Fans):
    1-year warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92
  • Product Width:
    800mm
  • Product Depth:
    900mm
  • Product Height:
    2185mm

Product Overview

CERTECH Benchmark Series 800mm wide racks are the ideal rack for installations requiring a high-density cable management solution, whilst also requiring the need for a heavy loading capacity, with these racks capable of holding 1500kgs of equipment. All racks are manufactured to universal 19” standards, providing the ability of use with universal 19” equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTECH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

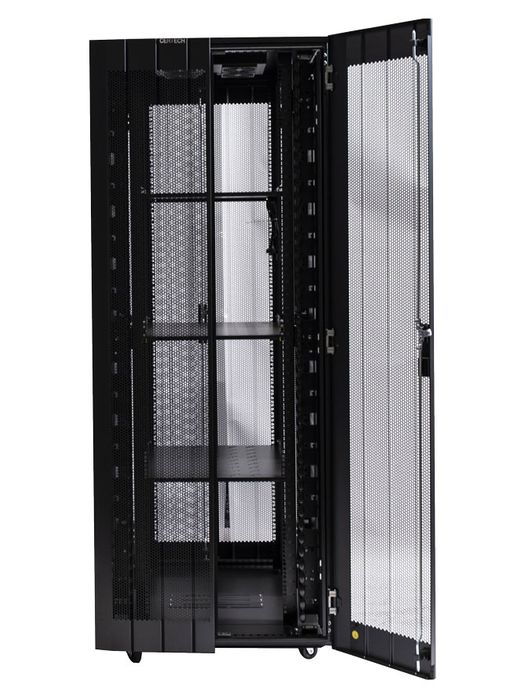

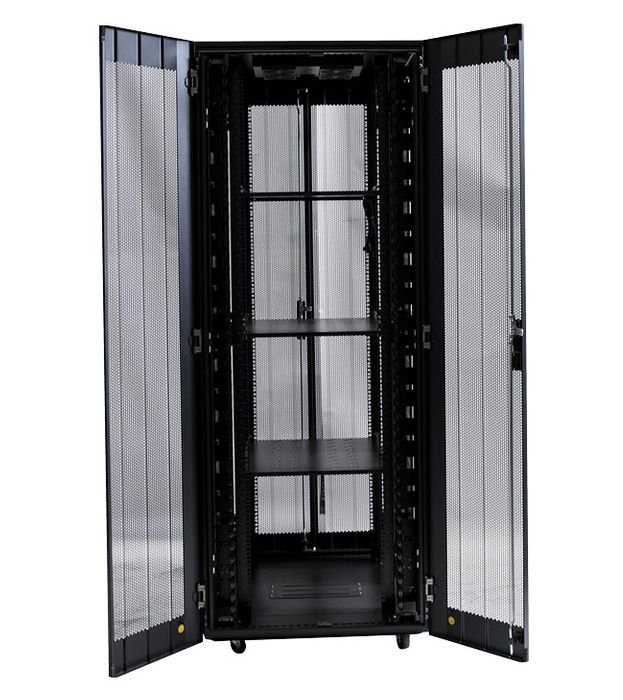

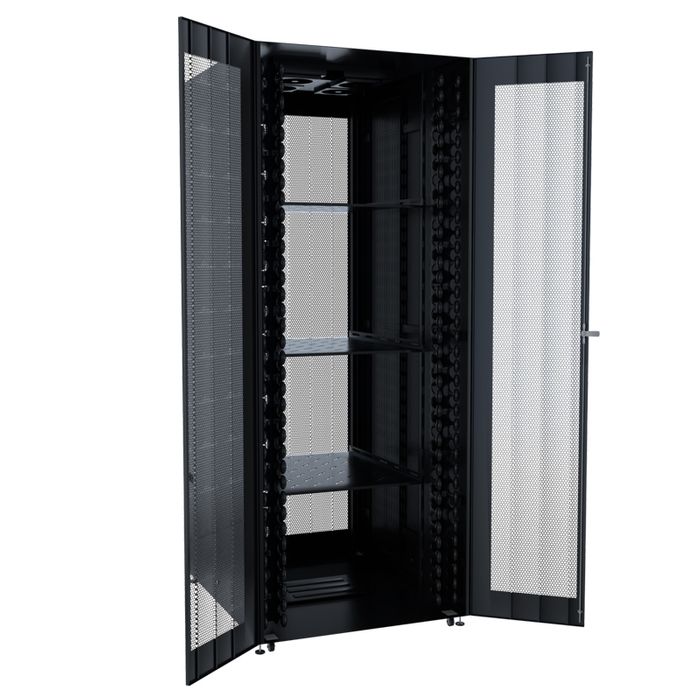

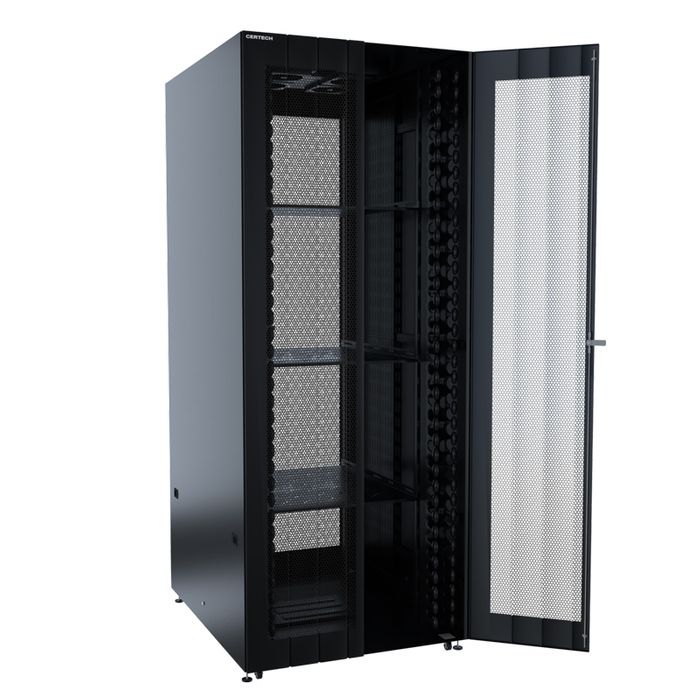

• Perforated Front & Rear Split Doors
Perforated front and rear doors provide ventilation for servers and networking equipment. Both doors being split, reduces the need to have 800mm of space to open the door completely.

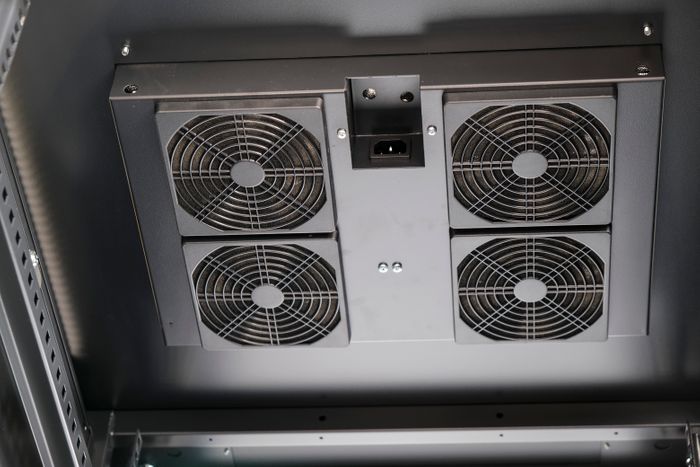

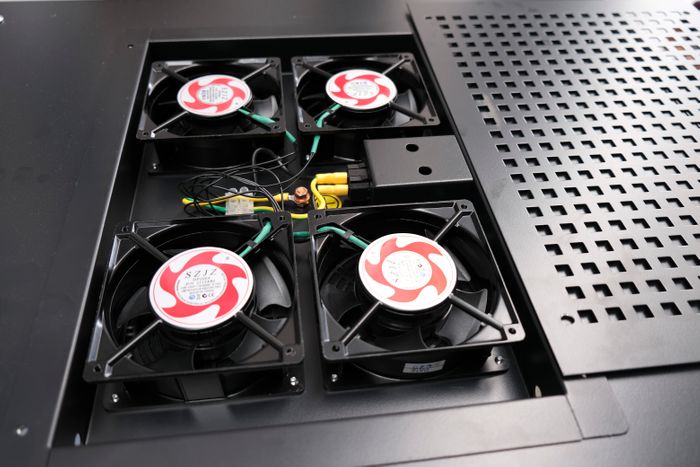

• Fans
Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.

• Cable Entry
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.

• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.

• Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

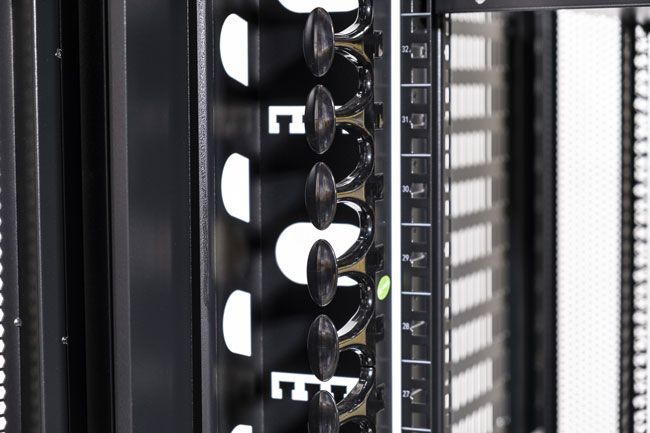

• Vertical Cable Management Ducts
Dual vertical cable management ducts with magnetic snap close covers, are pre-installed into every 800mm wide rack, making them the ideal rack for high-density cable installations.

• Adjoining Racks
Using our simple 4pc baying kit, racks are easily adjoined side by side.

• Integrated Earthing
Multiple earthing points & wires are fitted throughout the rack, on the roof, base, side panels & doors.
