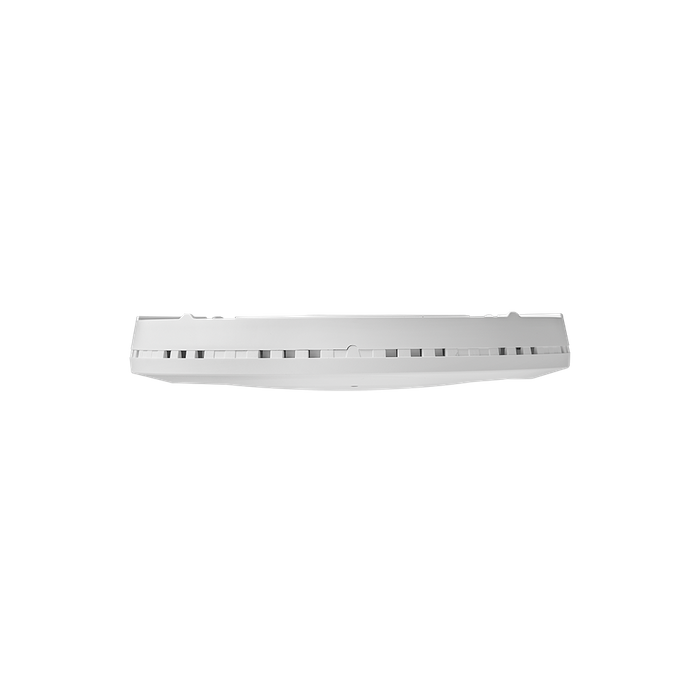

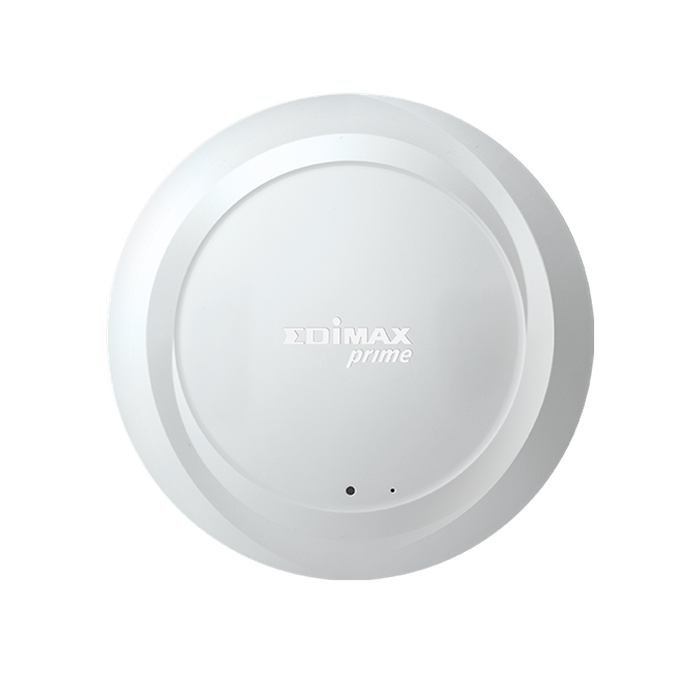

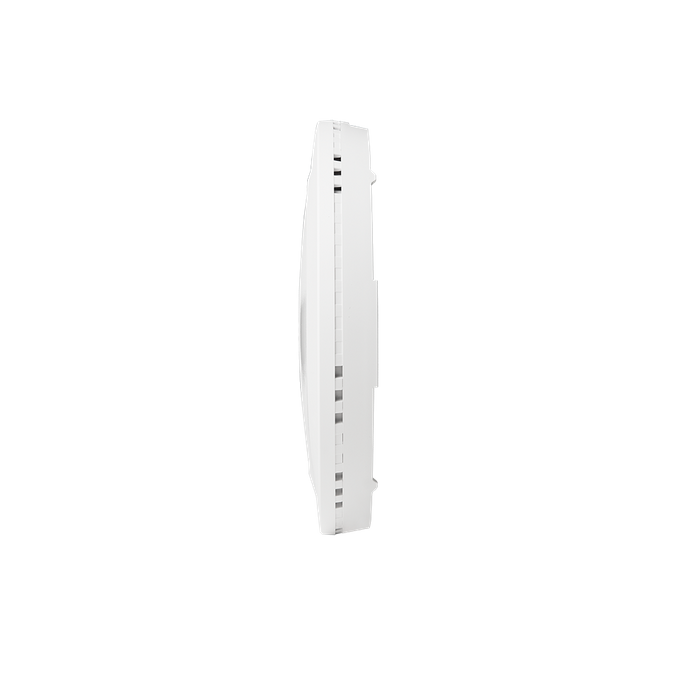

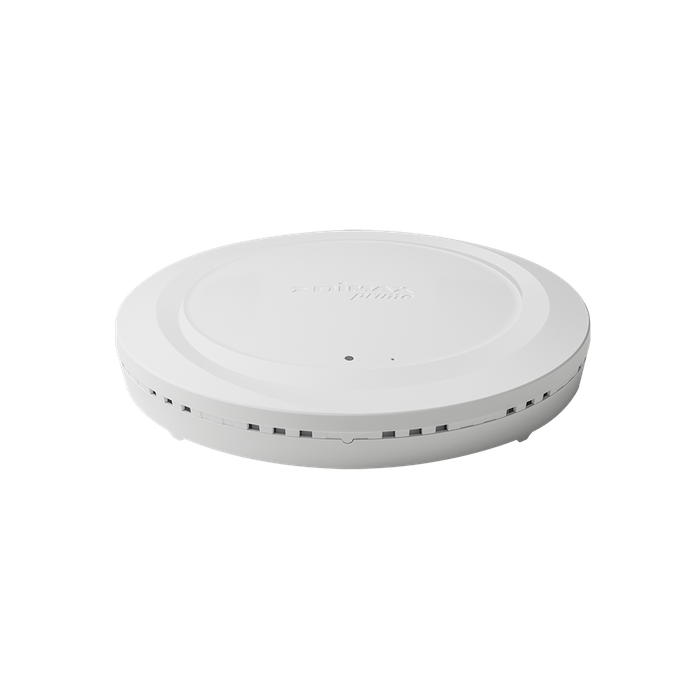

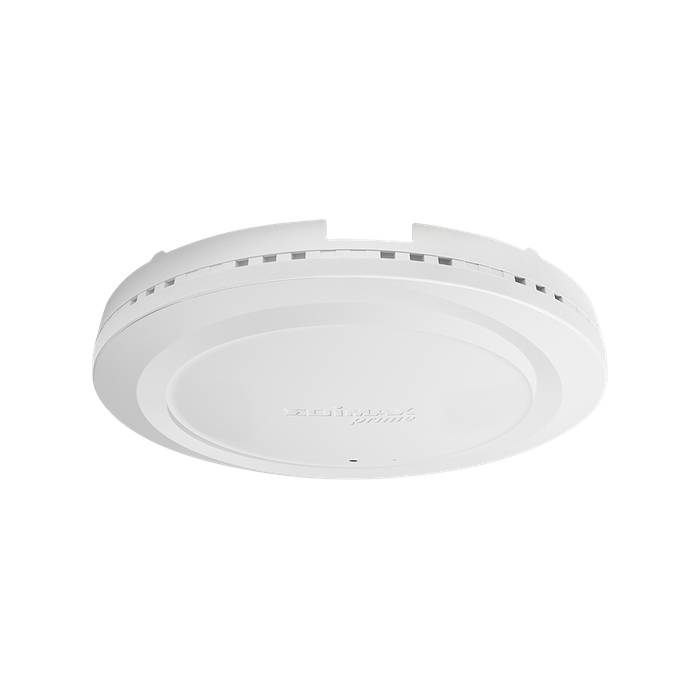

EDIMAX AX1800 Wi-Fi 6 Dual-Band Ceiling-Mount PoE Access Point
Product Overview
EDIMAX AX1800 Wi-Fi 6 Dual-Band Ceiling-Mount PoE Access Point
FEATURES
- AX1800 High-Speed: Max Wi-Fi speed up to 1800Mbps (2.4GHz at 574Mbps and 5GHz at 1201Mbps).
- Efficient 2-way MU-MIMO: Serves multiple devices simultaneously for both uplink and downlink data transmission.
- High Performance Wi-Fi: Beamforming, AirTime Fariness, Band Steering and 802.11r/k Fast Roaming enhance the best Wi-Fi performance.
- High Density Mobile & IoT Usage: Supports up to 256 users simultaneously, ideal for BYOD workplace.
- Reliable, Secure Wi-Fi: WPA3 & WPA2-AES encryption supported for high level of security.
- Business Environments: For office, meeting rooms to schools, campuses and hospitality business such as hotels, restaurants, shopping malls, retail shops and hospital.
Powerful Mainstream 11ax Wi-Fi For Modern Business & IoT Usage
More Capacity: Up to 4X capacity and data throughput to maximize Wi-Fi performance with MU-MIMO serving multiple devices simultaneously and improving capacity for wireless connections.
Faster Speeds: Offers up to 1.8Gbps peak speeds through Dual Band Simultaneous (DBS) combining 2.4 and 5GHz bands, and higher order modulation (1024 QAM) for streaming HD videos without lag.
Further Range: New packet format, longer guard intervals and modes that introduce redundancy, allowing error recovery in order to extend the range, especially for outdoor Wi-Fi Point- to-Point links.
Better Efficiency: Designed to be more efficient for multiple users with varying bandwidth needs to be served simultaneously for efficient wireless access in highly demand IoT environments.
Power Saving: Less battery drain with Target Wakeup Time (TWT) which allows devices to negotiate when and how often they will wake up to send or receive data for longer battery life.
Efficiently Serves Multiple Devices
Serves multiple devices simultaneously for data transmission with MU-MIMO technology.
Optimal Wi-Fi Performance
Beamforming, AirTime Fariness, Band Steering and 802.11r/k Fast Roaming enhance the best Wi-Fi performance.
Free, Easy & Intuitive Central Network Management
Built-in with Network Management Suite (NMS), web-based wireless network management. Company MIS persons can plan and manage CAX1800 access points’ powerful functionality according to their office space using an easy, remote web-based interface. (Click to learn more about NMS)
Ideal for SMB High-Density & BYOD Networking
Wide range of potential applications for enterprise High-Density, BYOD, mobile and IoT environments from office, meeting rooms to schools, campuses and hospitality business such as hotels, restaurants, shopping malls, retail shops and hospital.
Highlights
- 802.11ax High Speed Wi-Fi Dual-Band: IEEE 802.11ax concurrent dual-band with 1800Mbps (2.4GHz at 574Mbps and 5GHz at 1201Mbps).
- Efficient MU-MIMO: Serves multiple devices simultaneously to enhance connected devices capacity for data transmission.
- High Performance Wi-Fi: Beamforming with targeted, directional signals for better range and reliability. AirTime Fariness optimizes the Wi-Fi speed and eliminates Wi-Fi lag. Band steering balances channel utilization, enabling high capacity environment.
- Designed for High Density Mobile & IoT Usage: Supports up to 256 users simultaneously (100 users per band), ideal for BYOD (Bring Your Own Device) workplace.
- Reliable, Secure Wi-Fi: Reliable Wi-Fi access with WPA3 and WPA2-AES encryption supported for high level of security.
- Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, groups, customers or guests.
- 802.11r/k Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video & voice streaming applications.
- Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.

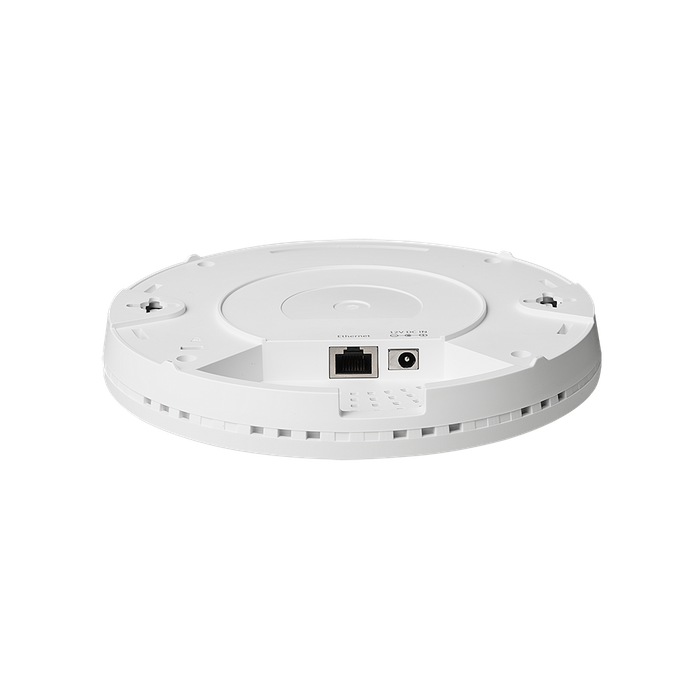

- Power over Ethernet (PoE): Supports IEEE 802.3af PoE and includes a power jack for flexible power supply option.
- Built-In RADIUS Server: With management for up to 256 user accounts.
- Business Environments: Advanced choice for high-performance and high-density applications. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
