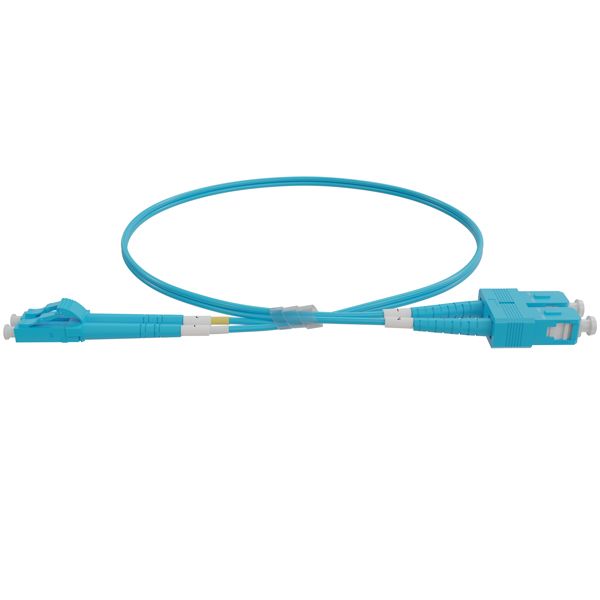

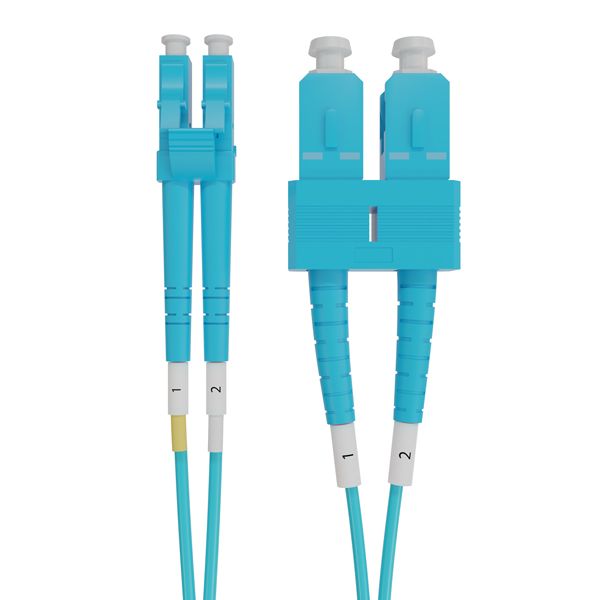

LC-SC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 7m
Product Overview
YOFC MaxBand 550 fibre, as an 850nm laser-optimised graded-index multimode optical fibre with an industry-standard 50/125um core and clad diameter is designed specially to support up to 550-metre link lengths using low-cost 850nm Vertical Cavity Surface Emitting Lasers (VCSEL) for 10 Gb/s Ethernet applications. It has a Differential Mode Delay (DMD) controlled index profile, nominally providing a minimum 4700 MHz- km of effective modal bandwidth (EMB) in the 10 Gb/s laser system. MaxBand 550 fibre supports 850 nm VVSCEL-based Gigabit Ethernet applications while completely compatible with slower legacy applications using LED optics.
Features:
• 900um OM4 50/125
• Aramid Yarn
• LSZH Jacket
• Fully supporting legacy 10 Mb/s applications and up to next generation 10 Gb/s applications
• Designed for use with the lowest-cost LED and 850 nm VCSEL transmitters
• Specially developed to support 10 Gb/s serial transmission up to 550-metre link lengths with low-cost 850 nm VCSEL
• With DMD measurements and specifications for ensuring reliable transmission performance.
• Manufactured by the advanced Plasma activated Chemical Vapor Deposition (PCVD) process
