1 x 8 HDMI PoC Extender Splitter over Cat6, 4K@60Hz to 70 Metres
Stock Code:
HDMIEXTSP1-8PRO
HDMIEXTSP1-8PRO
1 x 8 HDMI PoC Extender Splitter over Cat6, 4K@60Hz to 70 Metres
Product Overview

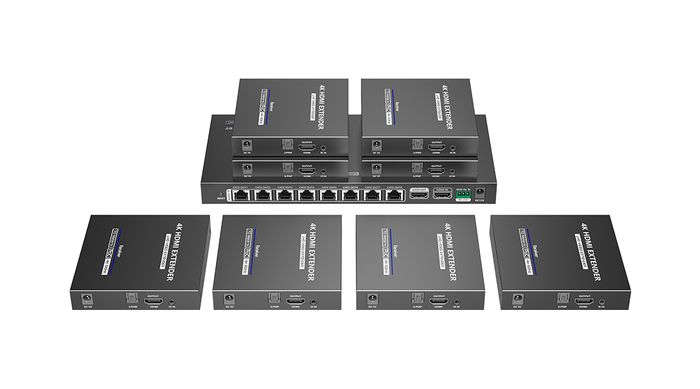

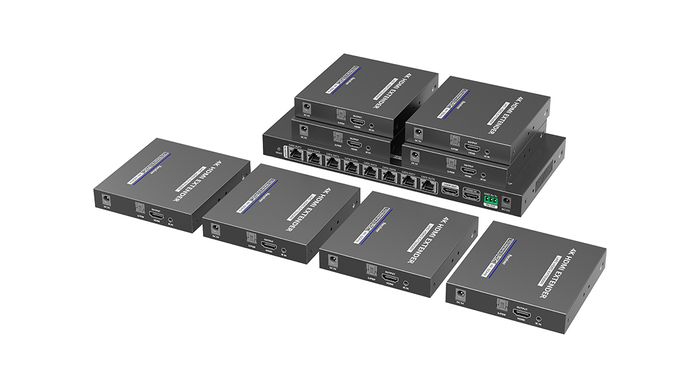

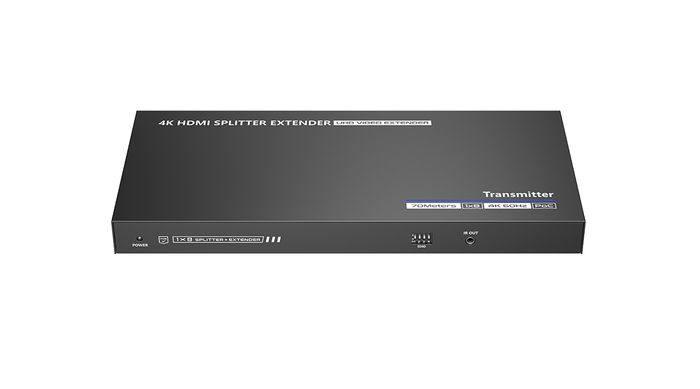

CERTECH 1 x 8 HDMI2.0 PoC Extender Splitter over CAT6/6a/7

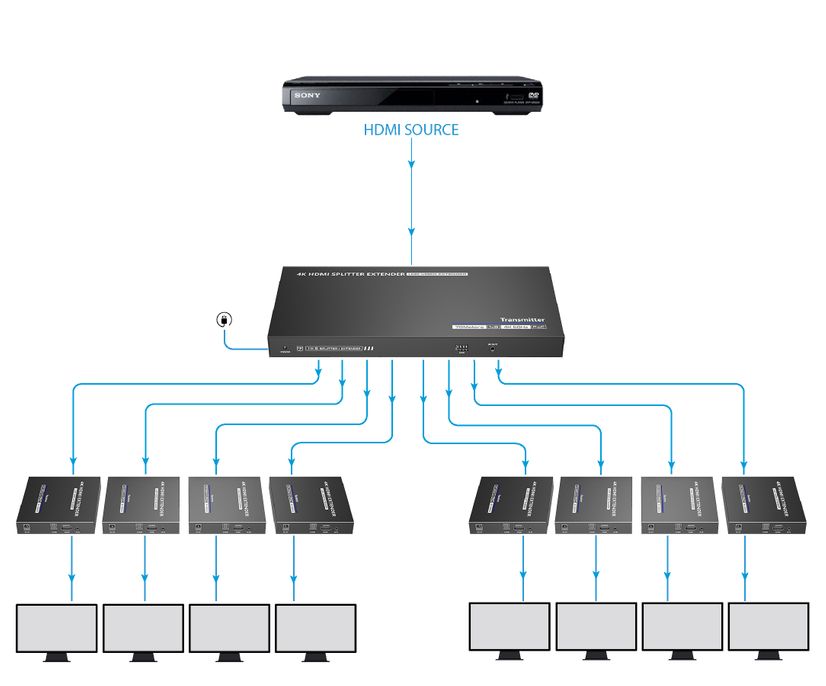

This HDMI product integrates the functions of distribution & extension. It distributes 1 HDMI input to 8 identical signal outputs, extending them up to 70m at a resolution of 4K@60Hz. It also supports IR passback, RS-232 control & other functions. It is suitable for a wide range of applications including studios, multimedia classrooms, transit depoloyment.
Features
- Distribution Mode: 1 in, 8 out
- Transmission Distance: 70m by Cat6/6A
- HDMI Signal: HDMI 2.0, HDCP2.2
- HDMI Resolution: 4K@60Hz (Max)
- Audio Formats: LPCM/DTS-HD/DTS-Audio.Dolby Digital 5.1
- IR: Supports IR passback dunction (20KHz~60KHz)
- RS-232: 3 Pin: TxD-RxD-GND, follows RS-232 levels
- Working Temperature: -20~60 degrees Celcius
- Storage Temperature: -30~70 degrees Celcius
- Humidity (no condensation): 0~90% RH
- Protection: ESD Protection, lightning protection, surge protection
- Power Supply: TX DC12V/5A
- Power Consumption: TX+ RX <50W
- Material: Iron
- Colour: Black
- Weight: TX 731g, RX 243g
- Dimensions: TX 260 (L) x 120 (W) x 23 (H), RX 105.5 (L) x 102.5 (W) x 20 (H)
