Cat6A RJ45 Shielded Tool-less Keystone Jack. 6pc Pack
Product Details
-
Colour:Silver
Product Overview

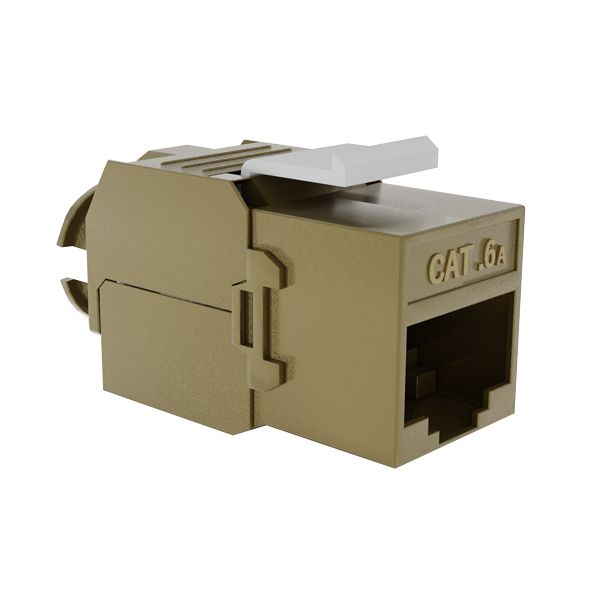

CERTECH Cat6A Shielded RJ-45 Tool-Less Keystone Jack.
180 Degree Termination
Colour: Silver
Recommended for use with RJ45 plugs only
FEATURES:
Performance conforms to ANSI/TIA-568-C.2 Category 6A specification
Die-casting design for optimal EMI protection
SupportsT568 A&B wiring
Tool-Less design allows all 4 pairs to be mass terminated with a pair of channel locks
Compact design ideal for high density applications
RoHS compliant
APPLICATIONS:
10GBASE-T ETHERNET (IEEE P802.3an)
1000BASE-TX Fast Ethernet
1000BASE-T Gigabit Ethernet
100BASE-TX Fast Ethernet;155/622 Mbps ATM
100 Mbps TP-PMD;1.2Gb/s ATM
4/16 Mbps Token Ring;100VG-AnyLAN
ELECTRICAL SPECS:
Dielectric Strength : 1000V RMS for 1min
Insulation Resistance : 500M? min
Contact Resistance : 20 m? per contact
Temperature Range : ?10? to 60? max
Humidity : 10%-65%
PHYSICAL SPECS:
High impact plastic housing,Flame retardant UL 94V-0
IDC Contact :Tinned 100? inch nickel plated over phosphor bronze
IDC Operating life : Minimum 250 Re-terminations
Jack Contact : Phosphor bronze, 50? inch gold plating over nickel plating in contact
Jack Operating life : Minimum 750 insertions
