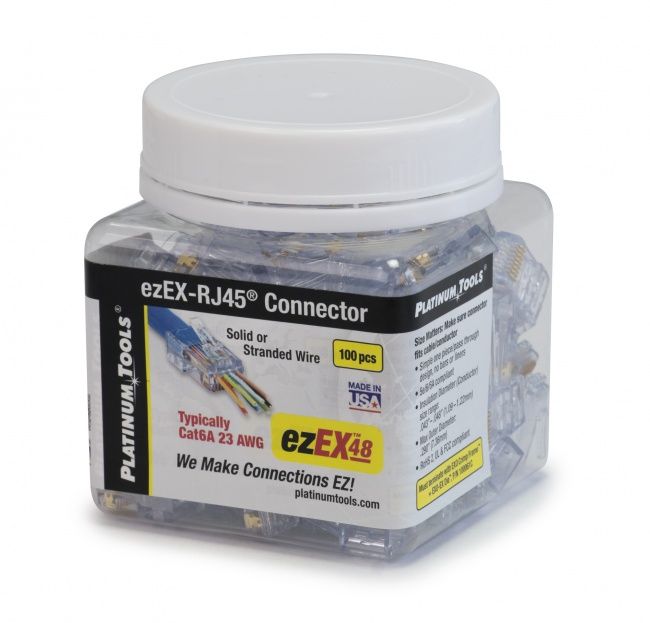

Platinum Tools ezEX48 RJ45 CAT6A Connector, 100pc Jar
Stock Code:
202048J
202048J
Platinum Tools ezEX48 RJ45 CAT6A Connector, 100pc Jar
Product Overview

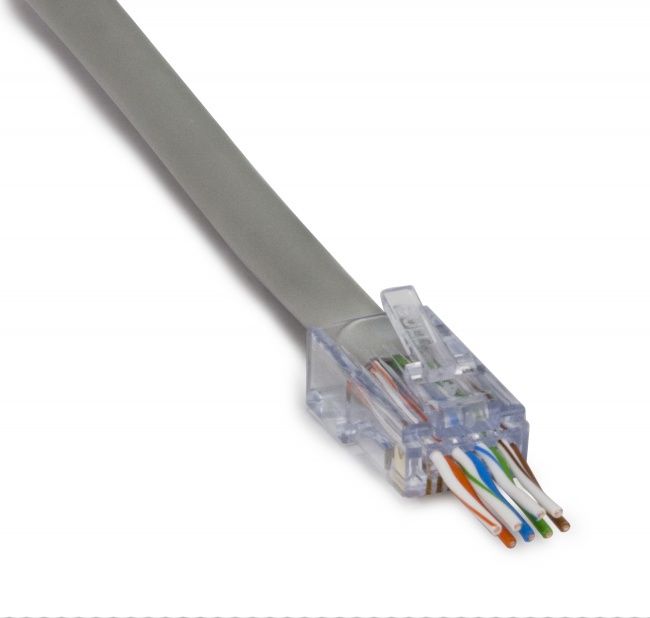

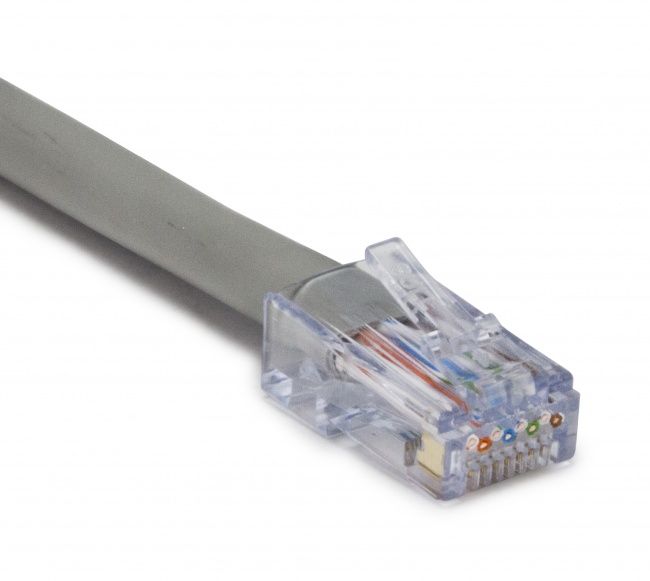

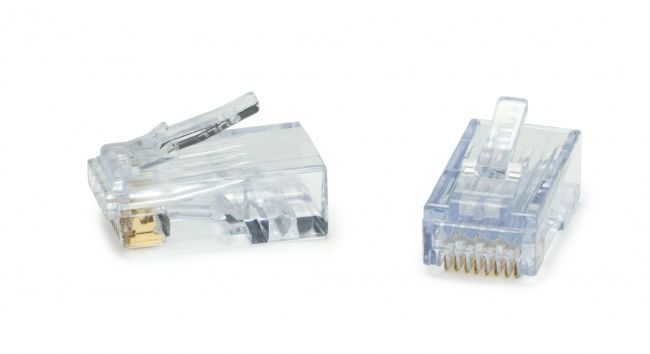

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications.
Required Tool: 100061C
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
- Max outer diameter: .290” (7.36mm)
- 50 micron gold plated contacts
- Solid or Stranded 23-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6A & Lg Cat6
- Made in the USA
- Patent 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2
