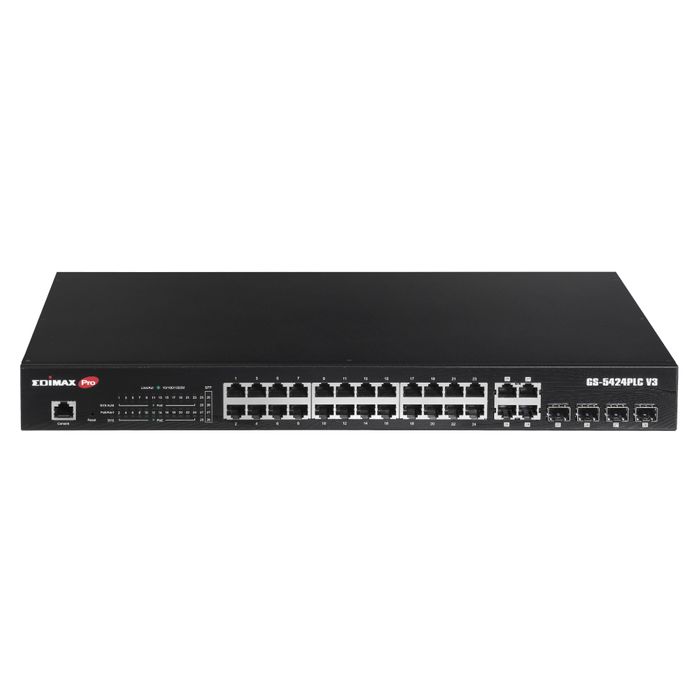

EDIMAX 28 Port Gigabit PoE+ Long Range Managed Switch w/ 4 RJ45 & SFP Combo Ports
Product Overview
EDIMAX Surveillance VLAN 28 Port Gigabit PoE+ Long Range Web Smart Switch w/ 4 Gigabit RJ45/SFP Combo Ports
Features:
- 24 Gigabit Ethernet PoE+ ports and 4 Gigabit RJ45/SFP combo ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 56Gbps backplane bandwidth, 41.6Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Dedicated Design for Surveillance Networks
The surveillance switch provides system integrators and installers easy configuration, automatic quick discovery, and product control on the network. Experience ease of mind & security.
Beyond Security
The surveillance VLAN switch series greatly enhances IP surveillance network systems. Supports fast & easy system settings, device discovery and user authentication. Just plug & play.
Auto-Created Surveillance VLAN
One-click "Config. Reload" button to initialize Surveillance VLAN for smooth and secure video transmission.
Auto Discovery
It gives you the flexibility to choose optimal products for your needs without being locked into a specific brand by auto discovery functions.
Auto Enrollment
When IP cameras on a network are discovered, they will be added to the Surveillance VLAN automatically.
Intelligent Thermal Control
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environtial temperature and control fan speeds, also turn on/off each fan for power saving and noise reduction.
PoE PD Alive Check
Offering high-speed network connection with power supply to Powered Devices (PDs) for cost saving of power line deployement, the switch PoE Powered Device (PD) alive check monitors real-time status of connected PDs and enables reboot fail PDs, further enhancing network reliability.
Dual Firmware
The switch has two firmwares stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
Long Range Mode
The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
PoE Backfeed Protection
Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Layer 2 Management
This web smart switch meets the network growing need by providing Layer 2 managed functions with advanced essential features such as SNMP v1/v2c/v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention & more.
