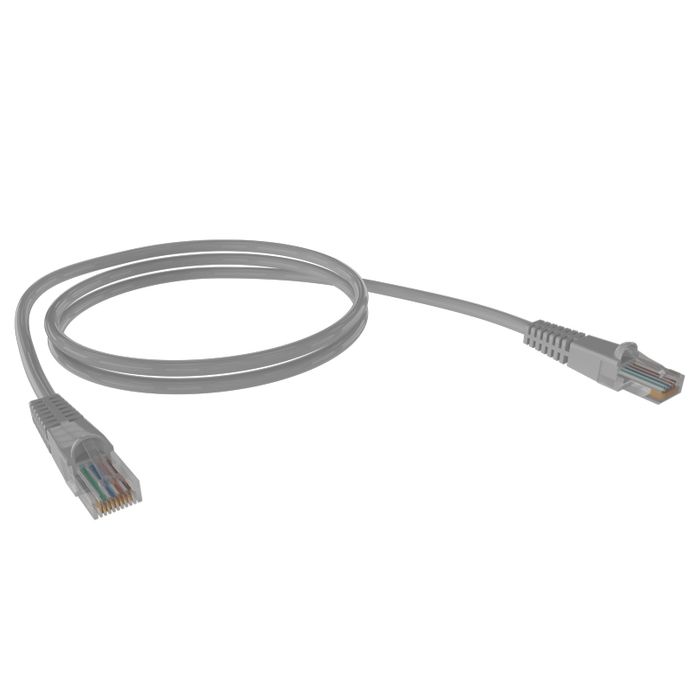

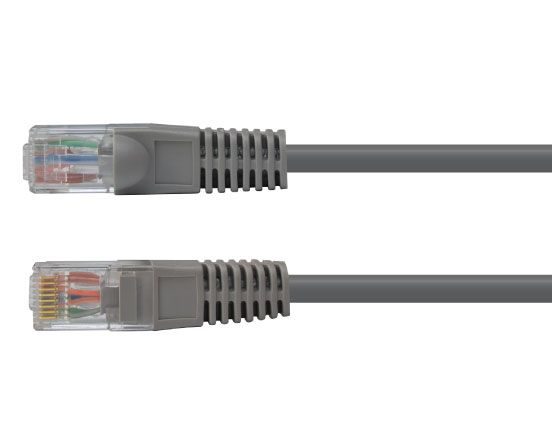

CERTECH Cat6 24AWG U/UTP RJ45 Patch Lead, 0.3m, Grey PVC Jacket
Stock Code:
NPLC6GY0.3
NPLC6GY0.3
CERTECH Cat6 24AWG U/UTP RJ45 Patch Lead, 0.3m, Grey PVC Jacket
Product Details
-
Product Type:Cat6 UTP 24WG Patch Leads
-
Colour:Grey
-
Material:PVC Jacket
-
Operating Frequency:250MHz
Product Overview
CERTECH Cat6 UTP Patch Leads - 250MHz
CERTECH Cat6 UTP patch leads conform to the TIA/EIA-568-B specification.
Patch leads are wired to the T568A pinout specification.
Tangle free latch down plugs and slimline injection molded boots.
Available in various colours and lengths.
Features
- Produced by an ISO9001 & ISO14001 certified manufacturer
- 100% tested & channel certified by 3P, UL & ETL
- Covered by a lifetime warranty
- Available in 10 colours
Specifications
- Conductor Gauge: 24AWG
- Conductor Type: Stranded
- Performance Level: 100% Channel Tested
- Cable Construction: U/UTP
- Jacket Material: PVC
- Plug Type: RJ45 8P8C
- Plug Housing Material: PVC
- Connector End A: RJ45 Modular Plug
- Connector End B: RJ45 Modular Plug
- Nominal Cable Outer Diamater: 5.6mm +/- 0.3mm
- Wiring Scheme: T568A
- Maximum Storage Temperature: 60°C
- Maximum Operating Temperature: 60°C
- Minimum Operating Temperature: -20°C
- Flammability Rating: IEC60332-1-2
- Standards Met: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-6-2 & IEC60332-1-2
- PoE Compatibility: PoE++ Type 3, rated to 60 Watts
