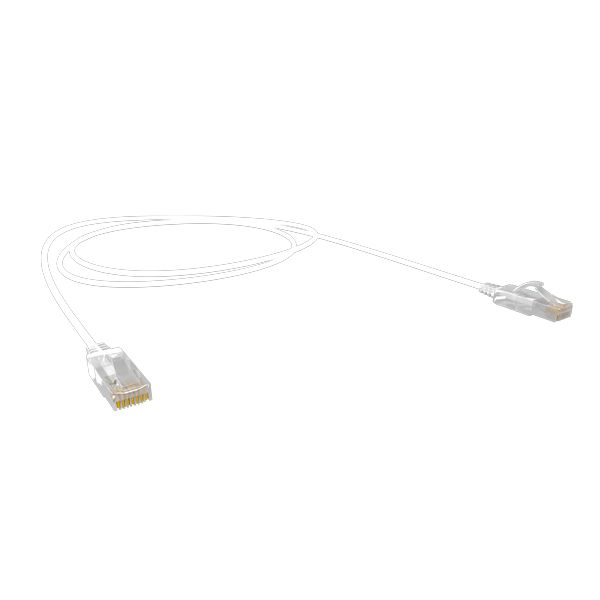

CERTECH Cat6A 30AWG UTP 10G RJ45 Patch Lead, White PVC Jacket, 0.75m

Stock Code:
NPLSC6AWH0.75
NPLSC6AWH0.75
CERTECH Cat6A 30AWG UTP 10G RJ45 Patch Lead, White PVC Jacket, 0.75m

Product Details

  • Product Type:
    Cat6A UTP Super-Thin (30AWG) Patch Leads
  • Colour:
    White
  • Material:
    PVC Jacket
  • Compliance:
    ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-3-2 & IEC 60332-1-2
  • Operating Frequency:
    500MHz

Product Overview

CERTECH Cat6A UTP Super-Thin (30AWG) Patch Leads - 500MHz

CERTECH Cat6A UTP super-thin patch leads conform to the TIA/EIA-568-B specification.
Patch leads are wired to the T568A pin-out specification.
They are component level tested and are made with tangle free slim-line injection moulded boots and latch down plugs, and are available in various colours and lengths.

Features

  • Produced by an ISO9001 & ISO14001 certified manufacturer
  • 100% tested & component level certified by 3P, UL & ETL
  • AS/CA S008:2020 Approved
  • Covered by a lifetime warranty
  • Perfect for cabling network data cabinets
  • Perfect for cabling home structured wiring boxes
  • Perfect for cabling high density patch environments
  • Available in 11 colours

Specifications

  • Conductor Gauge: 30AWG
  • Conductor Type: Stranded
  • Performance Level: 100% Component Tested
  • Cable Construction: U/UTP
  • Jacket Material: PVC
  • Plug Type: RJ45 8P8C
  • Plug Housing Material: PVC
  • Connector End A: RJ45 Modular Plug
  • Connector End B: RJ45 Modular Plug
  • Nominal Cable Outer Diamater: 3.1mm +/- 0.3mm
  • Wiring Scheme: T568A
  • Maximum Storage Temperature: 60°C
  • Maximum Operating Temperature: 60°C
  • Minimum Operating Temperature: -20°C
  • Flammability Rating: IEC60332-1-2
  • Standards Met: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50288-3-2 & IEC 60332-1-2
